Tiger UF3 Universal Milling Machine
Tiger UF3 Universal Milling Machine
Contact us for price
Location:New Delhi, India
orCall +91 98182 75782
Description

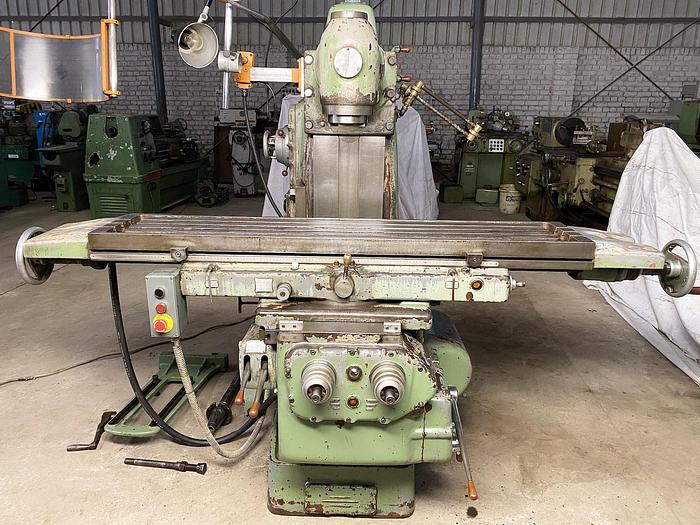

Tiger (Italy) make Universal Milling Machine in excellent working condition. The model of the machine is UF3 and the Table Size is 1525 mm x 305 mm. The technical details are as follows -
Make - Tiger (Italy)
Model - UF3
Table Size - 1525 mm x 305 mm
XYZ Travel - 1050 mm x 280 mm x 475 mm
Spindle Taper - ISO 50
Spindle Speeds - 27 rpm to 1600 rpm
Table Feed Travel Rate - 9 mm/min to 500 mm/min
- With 2 x Brackets, 1 x Arbour, 1 x Support for Horizontal Milling.
- Rotating type Universal Table.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Tiger |
| Model | UF3 |
| Condition | Used |
| Table Size | 1525 mm x 305 mm |
| XYZ Travel | 1050 mm x 280 mm x 475 mm |
| Spindle Taper | ISO 50 |
| Spindle Speeds | 27 rpm to 1600 rpm |
| Table Feed Travel Rate | 9 mm/min to 500 mm/min |
| Other Information 1 | With 2 x Brackets, 1 x Arbour, 1 x Support for Horizontal Milling. |
| Other Information 2 | Rotating type Universal Table. |
| Other Information 3 | Machine is in excellent working condition. |
