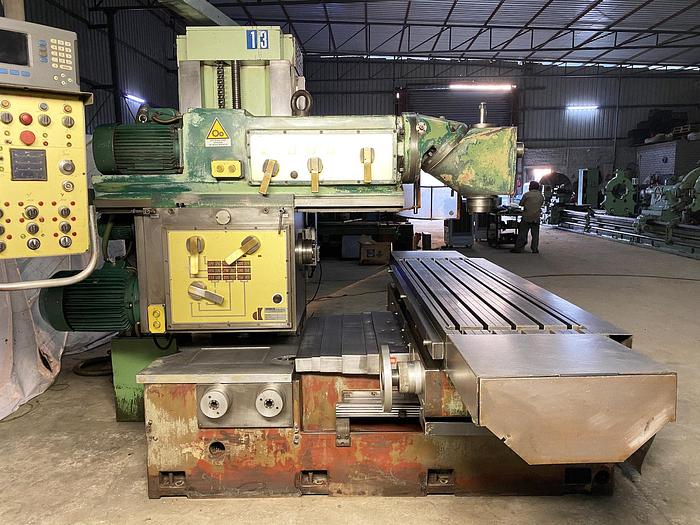

Deber FBF 2000 Bed Milling Machine
Deber FBF 2000 Bed Milling Machine
Contact us for price
Location:New Delhi, India
Description
Deber (Italy) make Horizontal & Vertical Bed Milling Machine in excellent working condition. The model of the machine is FBF 2000 and the Table Size is 2000 mm x 520 mm. The technical details are as follows -
Make - Deber (Italy)
Model - FBF 2000
Table Size - 2000 mm x 520 mm
XYZ Travel - 1500 mm x 650 mm x 825 mm
Horizontal Spindle Speeds - 15 rpm to 1000 rpm
Vertical Spindle Speeds - 21 rpm to 1100 rpm
Horizontal Spindle Taper - ISO 50
Vertical Spindle Taper - ISO 50
Feed Rate of Travel (Infinitely Variable) - 10 mm/min to 1500 mm/min
Over-Arm Travel (Cross Travel) of Vertical Milling Head - 1100 mm
Horizontal Spindle Motor - 15 HP
Vertical Spindle Motor - 10 HP
- Vertical Milling Head is Double-Swivel type (Huron Head).
- All 3-Axis are equipped with Ball-Screws
- Automatic Hydraulic Clamping of Table for better accuracy.
- Complete with lots of Cutters, Tool Holders etc.
- Electrical Drawings & Operating Manuals available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Deber |
| Model | FBF 2000 |
| Condition | Used |
| Table Size | 2000 mm x 520 mm |
| XYZ Travel | 1500 mm x 650 mm x 825 mm |
| Horizontal Spindle Speeds | 15 rpm to 1000 rpm |
| Vertical Spindle Speeds | 21 rpm to 1100 rpm |
| Horizontal Spindle Taper | ISO 50 |
| Vertical Spindle Taper | ISO 50 |
| Feed Rate of Travel (Infinitely Variable) | 10 mm/min to 1500 mm/min |
| Over-Arm Travel (Cross Travel) of Vertical Milling Head | 1100 mm |
| Horizontal Spindle Motor | 15 HP |
| Vertical Spindle Motor | 10 HP |
| Other Information 1 | Vertical Milling Head is Double-Swivel type (Huron Head). |
| Other Information 2 | All 3-Axis are equipped with Ball-Screws |
| Other Information 3 | Complete with lots of Cutters, Tool Holders etc. |
| Other Information 4 | Electrical Drawings & Operating Manuals available. |
| Other Information 5 | Machine is in excellent working condition. |
