MSZ Heavy Duty Lathe Machine
MSZ Heavy Duty Lathe Machine
Contact us for price
Location:New Delhi, India
orCall +91 98182 75782
Description

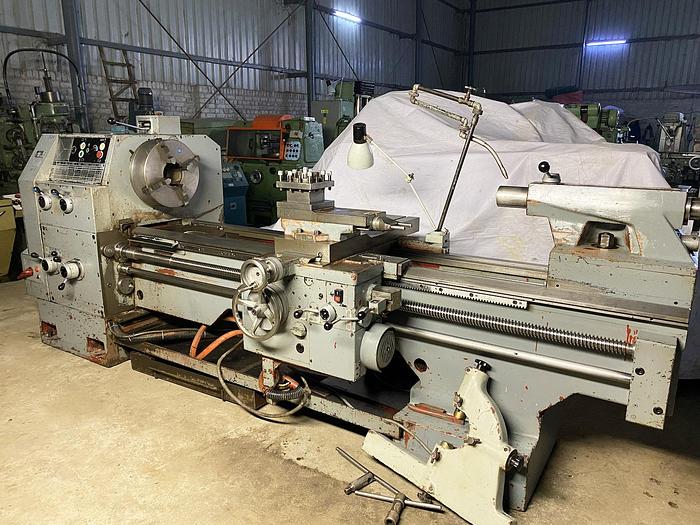

MSZ (Hungary) make Heavy-Duty Lathe Machine in excellent working condition. The Center Height of the Machine is 325 mm and the Length of Job is 2000 mm. The technical details are as follows -
Make - MSZ (Hungary)
Center Height - 325 mm
Max. Length of Job - 2000 mm
Max. Job Diameter over Bed - 650 mm
Max. Job Diameter over Cross-Slide - 430 mm
Max. Job Diameter in Gap Bed - 850 mm
Bed Width - 490 mm
Spindle Speeds - 7.1 rpm to 1400 rpm
Spindle Bore - 75 mm
Chuck Diameter - 400 mm
- With Motorised Rapid Travel of the Carriage & Cross-Slide.
- Complete with Follow Rest, Coolant Pump, etc.
- Machine is in excellent working condition.
Specifications
| Manufacturer | MSZ |
| Model | 2000 |
| Condition | Used |
| Center Height | 325 mm |
| Max. Length of Job | 2000 mm |
| Max. Job Diameter over Bed | 650 mm |
| Max. Job Diameter over Cross-Slide | 430 mm |
| Max. Job Diameter in Gap Bed | 850 mm |
| Bed Width | 490 mm |
| Spindle Speeds | 7.1 rpm to 1400 rpm |
| Spindle Bore | 75 mm |
| Chuck Diameter | 400 mm |
| Other Information 1 | With Motorised Rapid Travel of the Carriage & Cross-Slide. |
| Other Information 2 | Complete with Follow Rest, Coolant Pump, etc. |
| Other Information 3 | Machine is in excellent working condition. |
