Stanko 570 mm Stroke Slotting Machine
Stanko 570 mm Stroke Slotting Machine
Contact us for price
Location:New Delhi, India
orCall +91 98182 75782
Description

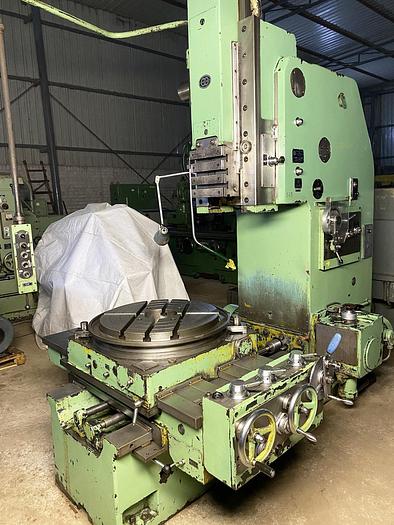

Stanko (Russia) make Heavy-Duty Slotting Machine in excellent working condition. The model of the machine is 7A430 and the Maximum Stroke Length is 570 mm. The technical details are as follows -
Make - Stanko (Russia)
Model - 7A430
Max. Stroke Length - 570 mm
Table Diameter - 630 mm
Longitudinal Travel - 700 mm
Cross Travel - 500 mm
Feed Travel Rate (Infinitely Variable) - 0 mm/stroke to 2.5 mm/stroke
Weight - 6 tons (Approximately)
- Possible to "Tilt" the Head for Taper Slotting.
- Feed & Rapid Travel of Table Rotation and Cross & Longitudinal Travels.
- Electrical Drawings & Operating Manual of the machine is available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Stanko |
| Model | 7A430 |
| Condition | Used |
| Max. Stroke Length | 570 mm |
| Table Diameter | 630 mm |
| Longitudinal Travel | 700 mm |
| Cross Travel | 500 mm |
| Feed Travel Rate (Infinitely Variable) | 0 mm/stroke to 2.5 mm/stroke |
| Weight | 6 tons (Approximately) |
| Other Information 1 | Possible to "Tilt" the Head for Taper Slotting. |
| Other Information 2 | Feed & Rapid Travel of Table Rotation and Cross & Longitudinal Travels. |
| Other Information 3 | Electrical Drawings & Operating Manual of the machine is available. |
| Other Information 4 | Machine is in excellent working condition. |
