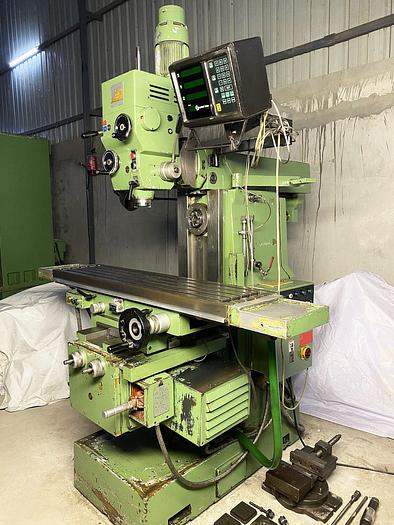

CMB Vertical Horizontal Milling Machine
CMB Vertical Horizontal Milling Machine
Contact us for price
Location:New Delhi, India
Description
Excellent condition CMB 3 No Vertical Horizontal Milling Machine located in New Delhi, India. Please click request price for more information. The technical details of the machine is as follows -
Make - CMB (Italy)
Table Size - 1400 mm x 330 mm
XYZ Travel - 1150 mm x 300 mm x 450 mm
Spindle Taper - ISO 40
Horizontal Spindle Speeds - 30 rpm to 1500 rpm
Vertical Spindle Speeds (continuously variable) - 200 rpm to 3800 rpm
Vertical Spindle Feed Travel - 130 mm
Vertical Spindle Feed Travel Rates - 0.04 mm/rev to 0.15 mm/rev
Vertical Spindle Diameter - 90 mm
- Rotating-type Universal Table.
- Vertical Head can be Tilted as well as Rotated.
- Complete with bracket & Arbour for Horizontal Milling.
- Accessories like Heavy-duty Vice, Leveling pads, etc. available.
- Equipped with 3-Axis DRO.
- Machine is in excellent working condition.
Specifications
| Manufacturer | CMB |
| Model | 3 No |
| Condition | Used |
| Table Size | 1400 mm x 330 mm |
| XYZ Travel | 1150 mm x 300 mm x 450 mm |
| Spindle Taper | ISO 40 |
| Horizontal Spindle Speeds | 30 rpm to 1500 rpm |
| Vertical Spindle Speeds (continuously variable) | 200 rpm to 3800 rpm |
| Vertical Spindle Feed Travel | 130 mm |
| Vertical Spindle Feed Travel Rates | 0.04 mm/rev to 0.15 mm/rev |
| Vertical Spindle Diameter | 90 mm |
| Other Specification 1 | Rotating-type Universal Table. |
| Other Specification 2 | Vertical Head can be Tilted as well as Rotated |
| Other Specification 3 | Complete with bracket & Arbour for Horizontal Milling. |
| Other Specification 4 | Accessories like Heavy-duty Vice, Leveling pads, etc. available. |
| Other Specification 5 | Equipped with 3-Axis DRO. |
| Other information | Machine is in excellent working condition. |
