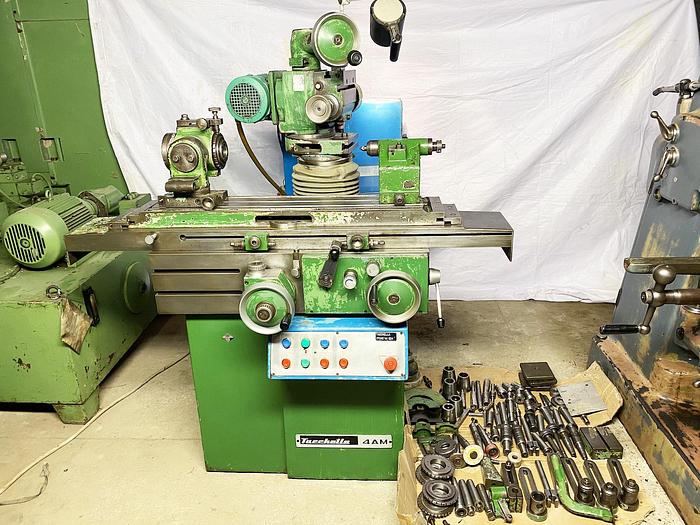

Tacchella Hydraulic Tool Cutter Grinder

Excellent condition Tacchella 4AM Tool Cutter Grinder located in New Delhi, India. Please click request price for more information. The technical details of the machine is as follows -

Make - Tacchella (Italy)

Model - 4AM

Table Size - 200 mm x 900 mm

Center Height - 155 mm

Distance between Centers - 475 mm

Longitudinal Travel - 400 mm

Cross Travel - 200 mm

Vertical Travel - 250 mm

Spindle Speeds - 2,200 rpm to 6,400 rpm

Table Movement Speed (Hydraulic) - 0.1 m/min to 10.0 m/min

Angle of Rotation of Wheel-Head - 0 Digree to 360Digree

Angle of Tilting of Wheel-Head - +20Digree to -20Digree

- With Hydraulic Table Longitudinal Movement.

- Complete with universal work-head, centre, wheel dressers etc..

- Lots of accessories like grinding wheels, collets, indexing plates etc.

- Operating Manual, Electrical Drawings etc. available.
