Jones & Shipman 1311 Precision Universal Cylindrical Grinder
Jones & Shipman 1311 Precision Universal Cylindrical Grinder
Contact us for price
Location:New Delhi, India
Description

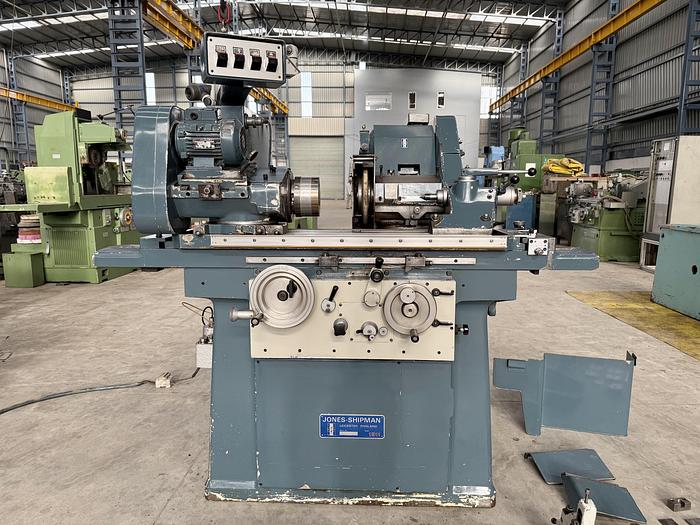

Precision Universal Cylindrical Grinding Machine made by Jones & Shipman (England) in excellent working condition. The model of the machine is 1311 and it is equipped with its Internal Grinding Attachment. The machine is complete with a 3-point steady, wheel dresser, coolant tank and pump. The Grinding Capacity is 254 mm (10") Job Diameter and 458 mm (18") Length of Job. The technical details are as follows -
Make - Jones & Shipman (England)
Model - 1311
Center Height - 127 mm (5")
Max. Job Diameter - 254 mm (10")
Max. Length of Job - 458 mm (18")
Grinding Wheel Size - Diameter 305 mm x 31.75 mm Width
Work-Head Speeds - 90 rpm to 320 rpm
Table Swivel Angle - +20 degree to -19 degree
- Graduations are in both - Metric as well as Imperial.
- Equipped with Internal Grinding Attachment.
- Complete with a 3-point steady, Wheel Dresser, Coolant Tank and Pump.
- Features like Auto-Cut and Plunge Grinding.
- Micro-Feed Adjustments on both Table & Wheel-Head Travel.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Jones & Shipman |
| Model | 1311 |
| Condition | Used |
| Stock Number | 2219 |
| Make | Jones & Shipman (England) |
| Model | 1311 |
| Center Height | 127 mm (5") |
| Max. Job Diameter | 254 mm (10") |
| Max. Length of Job | 458 mm (18") |
| Grinding Wheel Size | Diameter 305 mm x 31.75 mm Width |
| Work-Head Speeds | 90 rpm to 320 rpm |
| Table Swivel Angle | +20 degree to -19 degree |
| Other Information 1 | - Graduations are in both - Metric as well as Imperial. |
| Other Information 2 | - Equipped with Internal Grinding Attachment. |
| Other Information 3 | - Complete with a 3-point steady, Wheel Dresser, Coolant Tank and Pump. |
| Other Information 4 | - Micro-Feed Adjustments on both Table & Wheel-Head Travel. |
| Other Information 6 | - Machine is in excellent working condition. |
