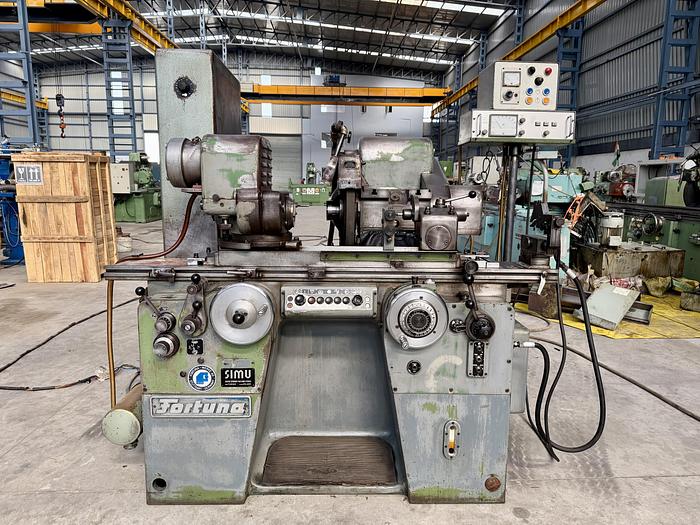

Fortuna 400 mm Length Automatic Cylindrical Grinding Machine

Fortuna (Germany) make Automatic Cylindrical Grinding Machine in excellent working condition. The Maximum Job Diameter is 270 mm and the Maximum Length of Job is 400 mm. The machine is complete with an In-Process Measurement System as well as Finibalanz (Fortuna) make Wheel Balancing System. The machine has Features like Auto-Cycle Working, Plunge Grinding, Delay, Auto Cut, Auto-Compensation, Spark-Out, Rough & Finish Grinding Cycle, Automatic Wheel Retraction etc. The machine is complete with Job Steady, Coolant Filtration System, Coolant Tank and Pump. The technical details are as follows -

Make - Fortuna (Germany)

Center Height - 138 mm

Max. Diameter of Job - 270 mm

Max. Length of Job - 400 mm

Grinding Wheel Size - Diameter 400 mm x 50 mm Width

Work-Head Speed - 63 rpm to 800 rpm

Table Rotation Angle - 16 degree to -5 degree

- Machine can work in complete Auto-Cycle Mode.

- Features of Plunge Grinding, Auto-Cut, Auto-Compensation etc.

- Features of Spark-Out, Delay, Rough & Finish Grinding etc.

- With In-Process Measurement System and Finibalanz Wheel Balancing System.

- Complete with Job Steady, Coolant Filtration Unit, Coolant Tank and Pump.

- Machine is in excellent working condition.
