Favretto Italy 400 mm x 1000 mm Surface Grinding Machine

Favretto Italy 400 mm x 1000 mm Surface Grinding Machine

Contact us for price

Location:New Delhi, India

or
Call +91 98182 75782

Description

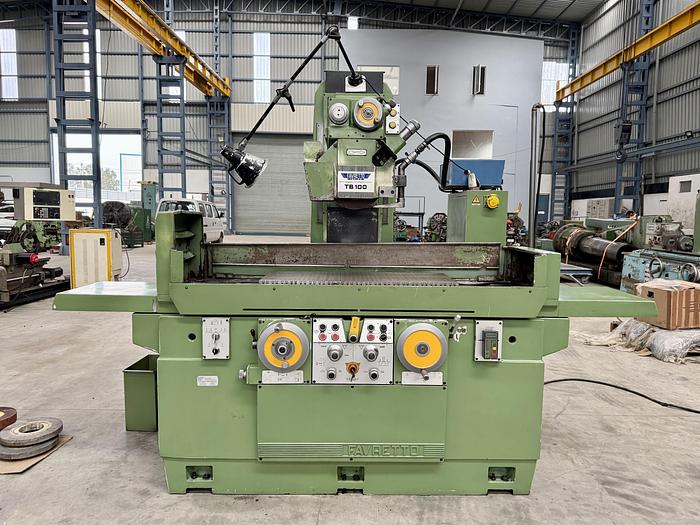

Favretto (Italy) make Surface Grinding Machine in excellent working condition. The model of the machine is TB-100 and the Grinding Capacity of the machine is 400 mm x 1000 mm. The machine is complete with its Wheel Dresser, Magnetic Coolant Filtration Unit, Coolant Tank & Pump, spare Grinding Wheels etc. The machine has Micro-Feed Travels in both Cross Travel as well as in Vertical Travel. The technical details are as follows -


Make - Favretto (Italy)

Model - TB-100

Magnet Size - 400 mm x 1000 mm

Grinding Wheel Size - Diameter 350 mm x 50 mm Width

Max. Height between Magnet to Wheel Center - 505 mm

Longitudinal Travels - 1080 mm

Cross Travels - 400 mm

Least Count of Vertical Travel - 5 Micron (0.005 mm)

Least Count of Cross Travel - 2 Micron (0.002 mm)

- Equipped with a Top Mounted Wheel Dresser.

- With Motorised Vertical Travel of the Wheel-Head.

- Complete with Magnetic Coolant Filtration Unit, Coolant Tank and Pump.

- Complete with many spare Grinding Wheels.

- Machine is in excellent working condition.

Show All

Specifications

ManufacturerFavretto
ModelTB-100
ConditionUsed
Stock Number2286
MakeFavretto (Italy)
ModelTB-100
Magnet Size400 mm x 1000 mm
Grinding Wheel SizeDiameter 350 mm x 50 mm Width
Max. Height between Magnet to Wheel Center505 mm
Longitudinal Travels1080 mm
Cross Travels400 mm
Least Count of Vertical Travel5 Micron (0.005 mm)
Least Count of Cross Travel2 Micron (0.002 mm)
Other Information 1- Equipped with a Top Mounted Wheel Dresser.
Other Information 2- With Motorised Vertical Travel of the Wheel-Head.
Other Information 3- Complete with Magnetic Coolant Filtration Unit, Coolant Tank and Pump.
Other Information 4- Complete with many spare Grinding Wheels.
Other Information 5- Machine is in excellent working condition.
