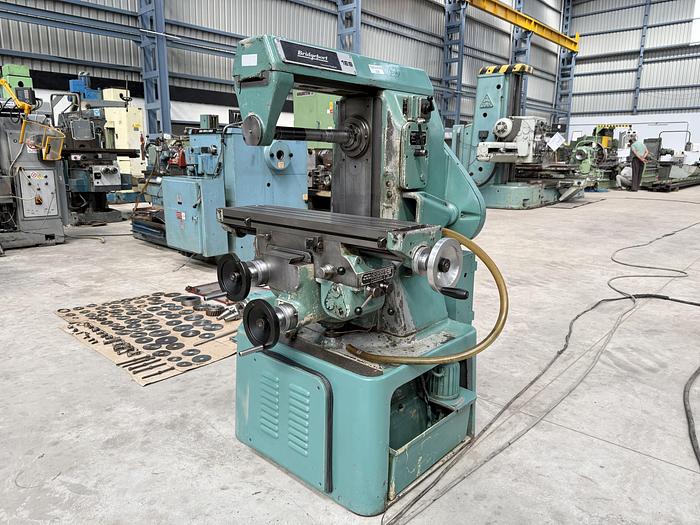

Bridgeport 1ES-G Universal Milling Machine
Bridgeport 1ES-G Universal Milling Machine
Contact us for price
Location:New Delhi, India
Description
Bridgeport (England) make Universal Milling Machine in excellent working condition. The model of the machine is 1ES-G and the Table Size is 760 mm x 205 mm. The machine has Automatic Feed Travels on the Longitudinal Travels. The machine is complete with its Vertical Milling Head, Arbour, Bracket, Cutters, Tool Holders and other accessories. The technical details are as follows -
Make - Bridgeport (England/USA)
Model - 1ES-G
Table Size - 762 mm x 203 mm
Longitudinal Feed Travel - 343 mm (Automatic)
Spindle Speeds - 50 rpm to 2500 rpm
Spindle Taper - ISO 40
Table Feed Rates - 0.08 mm/rev to 1.00 mm/rev
Cross Travel of Table - 152 mm
Vertical Travel of Table - 254 mm
- Complete with Arbour & Bracket for Horizontal Milling Operations.
- Machine is with its Vertical Milling Head.
- With lots of Cutters, Tool Holders, Splash Guards & other accessories.
- Equipped with Coolant Tank and Pump.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Bridgeport |
| Model | 1ES-G |
| Condition | Used |
| Stock Number | 2250 |
| Make | Bridgeport (England/USA) |
| Model | 1ES-G |
| Table Size | 762 mm x 203 mm |
| Longitudinal Feed Travel | 343 mm (Automatic) |
| Spindle Speeds | 50 rpm to 2500 rpm |
| Spindle Taper | ISO 40 |
| Table Feed Rates | 0.08 mm/rev to 1.00 mm/rev |
| Cross Travel of Table | 152 mm |
| Vertical Travel of Table | 254 mm |
| Other Information 1 | - Complete with Arbour & Bracket for Horizontal Milling Operations. |
| Other Information 2 | - Machine is with its Vertical Milling Head. |
| Other Information 3 | - With lots of Cutters, Tool Holders, Splash Guards & other accessories. |
| Other Information 4 | - Equipped with Coolant Tank and Pump. |
| Other Information 5 | - Machine is in excellent working condition. |
