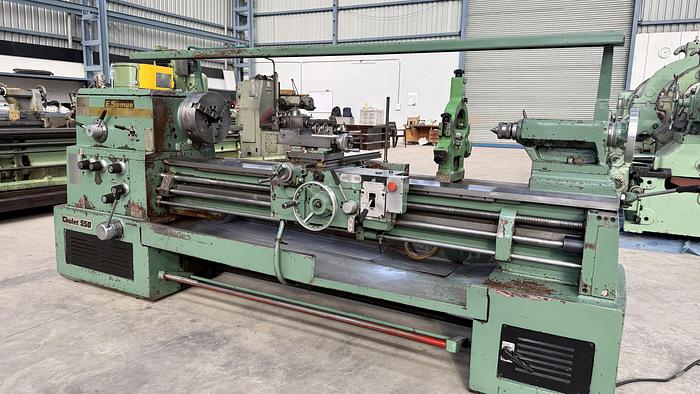

H. Ernault Somua Cholet 550 1700 mm Lathe Machine

H. Ernault Somua (France) make Lathe Machine in excellent working condition. The model of the machine is Cholet 550 and the Max. Length of Job is 1700 mm. The machine is complete with Job Steady, Tool Holders, Coolant Tank and Pump. It has features like Foot-Operated Brake, Rapid Motorised Travels, Micro-Feed Travels etc. The technical details are as follows -

Make - H. Ernault Somua (France)

Model - Cholet 550

Center Height - 250 mm

Max. Turning Length of Job - 1500 mm

Max. Distance between Centers - 1700 mm

Max. Job Diameter over Bed - 500 mm

Max. Job Diameter over Cross-Slide - 310 mm

Max. Job Diameter near Chuck - 550 mm

Bed Width - 385 mm

Spindle Bore - 52 mm

Chuck Diameter - 315 mm

Spindle Speeds - 32 rpm to 1600 rpm

- With Motorised Rapid Travels of Carriage & Cross-Slide.

- Micro-Feed Travels on the Cross-Slide Movement.

- Complete with Job Steady, Coolant Tank, Pump etc.

- Feature of Foot Operated Brake.

- Machine is in excellent working condition.
