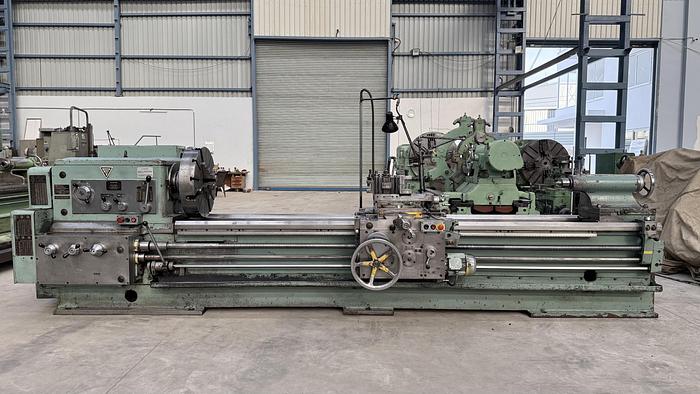

Stanko 1M636 Heavy Duty Lathe Machine
Stanko 1M636 Heavy Duty Lathe Machine
Contact us for price
Location:New Delhi, India
Description
Heavy Duty Lathe Machine made by Stanko (Russia) in excellent working condition. The model of the machine is 1M636 and the Center Height of the Machine is 350 mm and the Maximum Length of Job is 3000 mm. The machine has Automatic Rapid & Feed Travels on the Tool-Slide as well. The machine is also suitable for Automatic Taper Turning Operations. The technical details are as follows -
Make - Stanko (Russia)
Model - 1M636
Center Height - 350 mm
Max. Length of Job - 3000 mm
Max. Job Diameter over Bed - 700 mm
Max. Job Diameter over Cross-Slide - 360 mm
Max. Job Diameter in Gap - 1000 mm
4-Jaw Chuck Diameter - 600 mm
3-Jaw Chuck Diameter - 400 mm
Bed Width - 580 mm
Spindle Speeds - 10 rpm to 1250 rpm
Spindle Bore - 73 mm
Max. Job Length in Gap - 300 mm
- With Motorised Rapid Travel of the Carriage, Cross-Slide & Tool-Slide.
- Tool-Slide (Top Slide) also has automatic Feed Travels.
- Complete with Job Steady & other accessories.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Stanko |
| Model | 1M636 |
| Condition | Used |
| Stock Number | 2110 |
| Make | Stanko (Russia) |
| Model | 1M636 |
| Center Height | 350 mm |
| Max. Length of Job | 3000 mm |
| Max. Job Diameter over Bed | 700 mm |
| Max. Job Diameter over Cross-Slide | 360 mm |
| Max. Job Diameter in Gap | 1000 mm |
| 4-Jaw Chuck Diameter | 600 mm |
| 3-Jaw Chuck Diameter | 400 mm |
| Bed Width | 580 mm |
| Spindle Speeds | 10 rpm to 1250 rpm |
| Spindle Bore | 73 mm |
| Max. Job Length in Gap | 300 mm |
| Other Information 1 | - With Motorised Rapid Travel of the Carriage, Cross-Slide & Tool-Slide. |
| Other Information 2 | - Tool-Slide (Top Slide) also has automatic Feed Travels. |
| Other Information 3 | - Complete with Job Steady & other accessories. |
| Other Information 4 | - Machine is in excellent working condition. |
