Stanko 5K324A Hydraulic Gear Hobbing Machine

Stanko 5K324A Hydraulic Gear Hobbing Machine

Contact us for price

Location:New Delhi, India

or
Call +91 98182 75782

Description

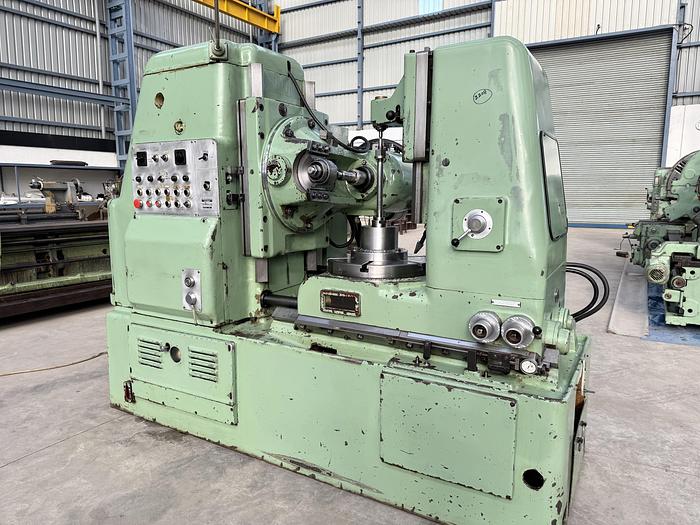

Stanko (Russia) make Hydraulic Gear Hobbing Machine in excellent working condition. The model of the machine is 5K324A and the Maximum Module Capacity is 8 Modules and Maximum Gear Diameter is 500 mm. The machine is complete with Change Gears, Arbours, Splash Guards, Operating Manuals, Electrical Drawings etc. The technical details are as follows -


Make - Stanko (Russia)

Model - 5K324A

Max. Module - 8 module

Max. Diameter of the Gear - 500 mm

Max. Width of Gear - 300 mm

Max. Vertical Travel of Hob-Slide - 350 mm

Table Diameter - 530 mm

Max. Hob Cutter Size - Diameter 200 mm x 200 mm Length

Max. Hob Shifting - 100 mm

Hob Cutter Speeds - 50 rpm to 310 rpm

Table Bore Diameter - 120 mm

- Machine can work in Manual Mode as well as complete Auto-Cycle Mode.

- Complete with Change Gears, Arbour, Mandrels, and other accessories.

- Complete with Splash Guards, Coolant Tank and Pump.

- Operating Manual & Electrical Drawing is available.

- Machine is in excellent working condition.

Show All

Specifications

ManufacturerStanko
Model5K324A
ConditionUsed
Stock Number2208
MakeStanko (Russia)
Model5K324A
Max. Module8 module
Max. Diameter of the Gear500 mm
Max. Width of Gear300 mm
Max. Vertical Travel of Hob-Slide350 mm
Table Diameter530 mm
Max. Hob Cutter SizeDiameter 200 mm x 200 mm Length
Max. Hob Shifting100 mm
Hob Cutter Speeds50 rpm to 310 rpm
Table Bore Diameter 120 mm
Other Information 1- Machine can work in Manual Mode as well as complete Auto-Cycle Mode.
Other Information 2- Complete with Change Gears, Arbour, Mandrels, and other accessories.
Other Information 3- Complete with Splash Guards, Coolant Tank and Pump.
Other Information 4- Operating Manual & Electrical Drawing is available.
Other Information 5- Machine is in excellent working condition.
