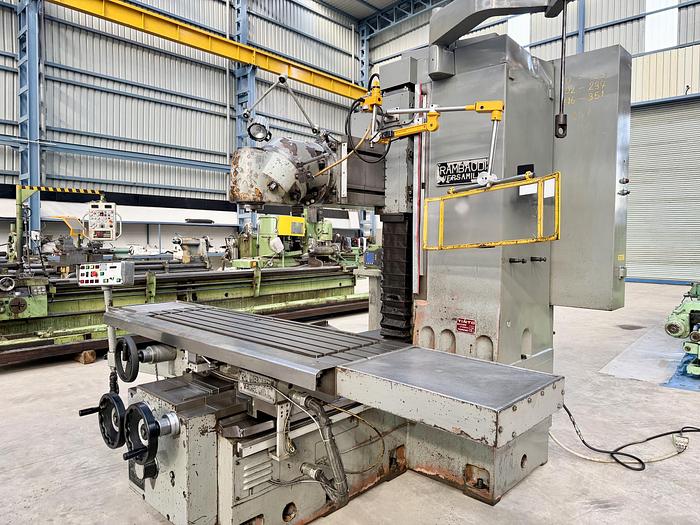

Rambaudi VersaMill 1800 mm x 510 mm Bed Type Milling Machine
Rambaudi VersaMill 1800 mm x 510 mm Bed Type Milling Machine
Contact us for price
Location:New Delhi, India
Description
Rambaudi (Italy) make Heavy-Duty Bed Type Milling Machine in excellent working condition. The model of the machine is VersaMill and the Table Size is 1800 mm x 510 mm. The Vertical Milling Head is a Parking-Head Type Head which can be removed to do Horizontal Milling Operations. The machine is equipped with a Heidenhain 3-Axis DRO. The technical details are as follows -
Make - Rambaudi (Italy)
Model - Versamill
Table Size - 1800 mm x 510 mm
XYZ Travel of Table - 1400 mm x 650 mm x 850 mm
Spindle Taper - ISO 50
Spindle Speeds - 22 rpm to 2000 rpm
Feed Rate of Travels - 10 mm/min to 2600 mm/min
Max. Height between Table Top to Vertical Spindle - 635 mm
Spindle Motor - 9 kW
- Packing-type Vertical Milling Head can be removed to do Horizontal Milling.
- Double-Swivel type Vertical Milling Head suitable for Angular, Vertical & Horizontal Milling.
- Equipped with a Heidenhain 3-Axis DRO.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Rambaudi |
| Model | Versamill |
| Condition | Used |
| Stock Number | 2211 |
| Make | Rambaudi (Italy) |
| Model | Versamill |
| Table Size | 1800 mm x 510 mm |
| XYZ Travel of Table | 1400 mm x 650 mm x 850 mm |
| Spindle Taper | ISO 50 |
| Spindle Speeds | 22 rpm to 2000 rpm |
| Feed Rate of Travels | 10 mm/min to 2600 mm/min |
| Max. Height between Table Top to Vertical Spindle | 635 mm |
| Spindle Motor | 9 kW |
| Other Information 1 | - Packing-type Vertical Milling Head can be removed to do Horizontal Milling. |
| Other Information 2 | - Double-Swivel type Vertical Milling Head suitable for Angular, Vertical & Horizontal Milling. |
| Other Information 3 | - Equipped with a Heidenhain 3-Axis DRO. |
| Other Information 4 | - Machine is in excellent working condition. |
