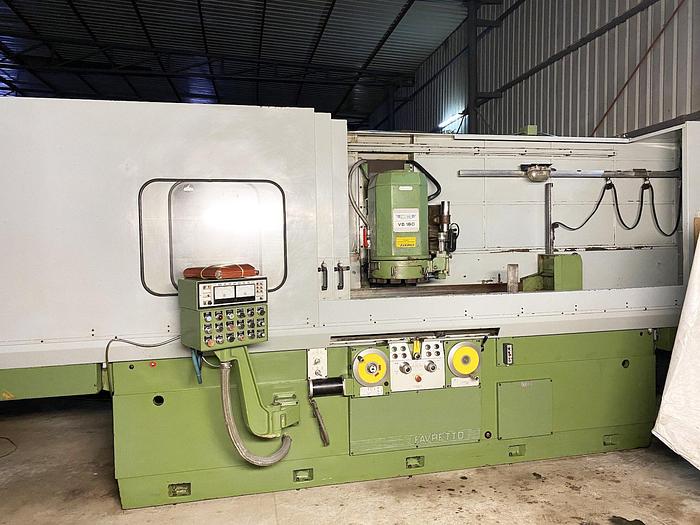

Favretto VB 160 Vertical Surface Grinder
Favretto VB 160 Vertical Surface Grinder
Contact us for price
Location:New Delhi, India
Description
Excellent condition Favretto VB 160 Vertical Surface Grinder located in New Delhi, India. Please click request price for more information. The technical details of the machine is as follows - Make - Favretto (Italy) Model - VB 160 Magnet Size - 400 mm x 1600 mm Table Size - 400 mm x 2000 mm Segment Wheel Diameter - 430 mm Maximum Job Height - 400 mm No. of Segments in Wheel - 12 pcs. Longitudinal Travel of Table - 1680 mm Least Count of the Vertical Feed - 5 microns - Equipped with Siemens PLC for auto-cycle operation. - Machine is equipped with MARPOSS for in-process measurement. - Rapid Motorised Vertical Travel of Wheel-Head. - Automatic Depth Adjustment "Auto-Cut" - Complete with coolant tank, pump & wheel dresser. - Operating Manual, Electrical Drawings etc available. - Machine is in excellent working condition.
Specifications
| Manufacturer | Favretto |
| Model | VB 160 |
| Condition | Used |
| Magnet Size | 400 mm x 1600 mm |
| Table Size | 400 mm x 2000 mm |
| Segment Wheel Diameter | 430 mm |
| Maximum Job Height | 400 mm |
| No of Segments in Wheel | 12 pcs. |
| Longitudinal Travel of Table | 1680 mm |
| Least Count of the Vertical Feed | 5 microns |
| Other Specification 1 | Equipped with Siemens PLC for auto-cycle operation. |
| Other Specification 2 | Machine is equipped with MARPOSS for in-process measurement. |
| Other Specification 3 | Rapid Motorised Vertical Travel of Wheel-Head. |
| Other Specification 4 | Automatic Depth Adjustment "Auto-Cut" |
| Other Specification 5 | Complete with coolant tank, pump & wheel dresser. |
| Other Specification 6 | Operating Manual, Electrical Drawings etc available. |
| Other information | Machine is in excellent working condition. |
