Brierley ZB32 Universal Precision Drill and End Mill Grinder
Brierley ZB32 Universal Precision Drill and End Mill Grinder
Contact us for price
Location:New Delhi, India
Description

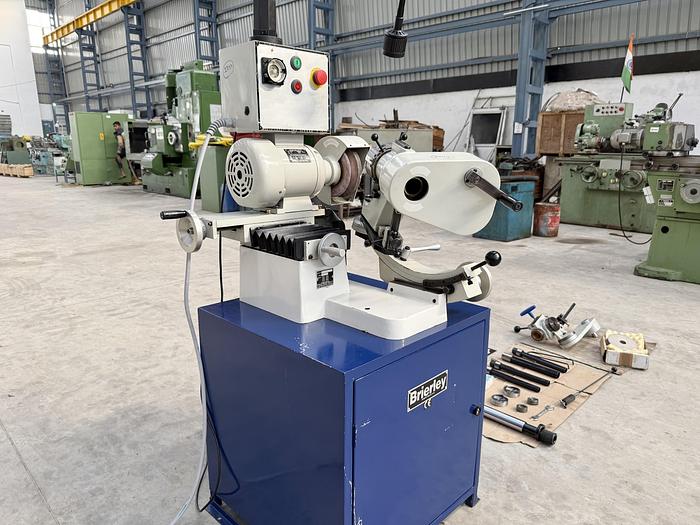

Brierley (England) make Universal Precision Drill and End Mill Grinder in excellent working condition. The model of the machine is ZB32 Universal and the Drill Grinding Capacity is from 3 mm to 32 mm. The machine is suitable for ordinary Twist Drills, Step Drills, Counter Sink & Counter Bore Drills, Core Drills, Multi-step Drills, Subland Drill, Straight Flute & Spiral Flute Taps, Point Grinding & Web Thinning, Four-Facet Point Drills, End Mills, etc. etc. The machine is complete with spare Cams, Diamond Wheel, Collets, Cams, and Radial Relief Grinding attachment. The technical details are as follows -
Make - Brierley (England)
Model - ZB32 Universal
Drill Grinding Capacity - 3 mm to 32 mm
Point Angle - 40 degree to 180 degree
Work-Head Tilting Angle - 0 degree to 20 degree
Clearance Angle - 0 degree to 18 degree
Brake Motor - 0.37 kW
Grinding Wheel Size - Diameter 180 mm x 20 mm Width
Dish Wheel Size - Diameter 165 mm x 21 mm Width
- Complete with spare Cams, Diamond Wheel, Collets, etc.
- Operating Manual & Electrical Drawings are available.
- Machine is in excellent working condition.
Specifications
Manufacturer | Brierley |
Model | ZB32 Universal |
Condition | Used |
Stock Number | 2243 |
Make | Brierley (England) |
Model | ZB32 Universal |
Drill Grinding Capacity | 3 mm to 32 mm |
Point Angle | 40 degree to 180 degree |
Work-Head Tilting Angle | 0 degree to 20 degree |
Clearance Angle | 0 degree to 18 degree |
Brake Motor | 0.37 kW |
Grinding Wheel Size | Diameter 180 mm x 20 mm Width |
Dish Wheel Size | Diameter 165 mm x 21 mm Width |
Other Information 1 | - Complete with spare Cams, Diamond Wheel, Collets, etc. |
Other Information 2 | - Operating Manual & Electrical Drawings are available. |
Other Information 3 | - Machine is in excellent working condition. |
