Tacchi Italy 5 meter Heavy Duty Lathe Machine
Tacchi Italy 5 meter Heavy Duty Lathe Machine
Contact us for price
Location:New Delhi, India
Description

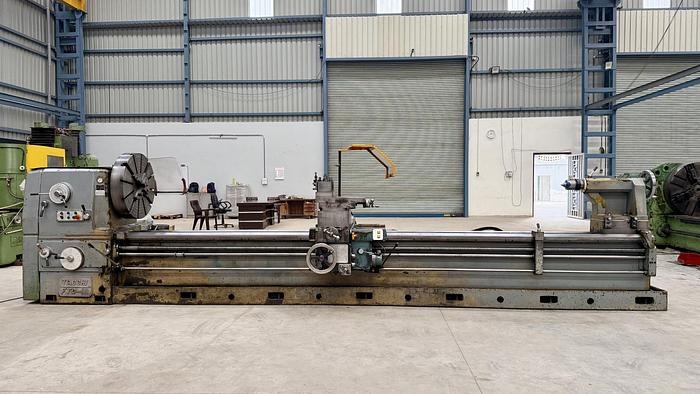

Heavy Duty Lathe Machine made by Tacchi (Italy) in excellent working condition. The model of the machine is FTC and the Center Height of the machine is 550 mm and the Maximum Job Length is 5000 mm. The machine is complete with its Closed Job Steady, Open Steady, Follow Rest and many other accessories. The technical details are as follows -
Make - Tacchi (Italy)
Model - FTC
Center Height - 550 mm
Max. Length of Job - 5000 mm
Max. Job Diameter over Bed - 1100 mm
Max. Job Diameter over Cross-Slide - 830 mm
Max. Job Diameter in Gap - 1500 mm
Bed Width - 570 mm
Chuck Diameter - 800 mm
Spindle Speeds - 9 rpm to 700 rpm
Spindle Bore - 105 mm
Max. Job Length in Gap - 325 mm
- Motorised Rapid Travels on Carriage & on Cross-Slide.
- With 2-point & 3-point Job Steadies, Follow Rest, & many other accessories.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Tacchi |
| Model | FTC |
| Condition | Used |
| Stock Number | 2166 |
| Make | Tacchi (Italy) |
| Model | FTC |
| Center Height | 550 mm |
| Max. Length of Job | 5000 mm |
| Max. Job Diameter over Bed | 1100 mm |
| Max. Job Diameter over Cross-Slide | 830 mm |
| Max. Job Diameter in Gap | 1500 mm |
| Bed Width | 570 mm |
| Chuck Diameter | 800 mm |
| Spindle Speeds | 9 rpm to 700 rpm |
| Spindle Bore | 105 mm |
| Max. Job Length in Gap | 325 mm |
| Other Information 1 | - Motorised Rapid Travels on Carriage & on Cross-Slide. |
| Other Information 2 | - With 2-point & 3-point Job Steadies, Follow Rest, & many other accessories. |
| Other Information 3 | - Machine is in excellent working condition. |
