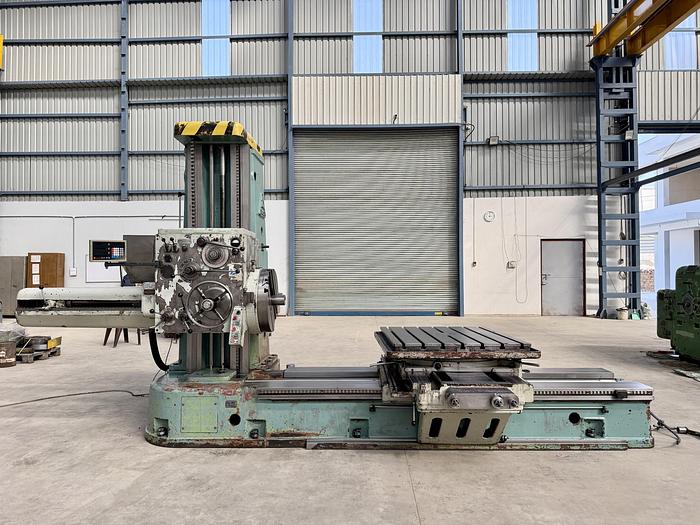

TOS H-100 Horizontal Boring Machine
TOS H-100 Horizontal Boring Machine
Contact us for price
Location:New Delhi, India
or
Call +91 98182 75782
Description
Horizontal Boring Machine made by TOS (Czech Republic) in excellent working condition. The model of the machine is H-100 and the Table Size is 1240 mm x 1120 mm. The machine is complete with its Facing Chuck and is equipped with a 3-Axis DRO. The technical details are as follows -
Make - TOS (Czech Republic)
Model - H-100
Spindle Diameter - 100 mm
Table Size - 1240 mm x 1120 mm
Cross Travel - 1250 mm
Vertical Travel - 1120 mm
Longitudinal Travel - 1800 mm
Spindle Travel - 900 mm
Facing Chuck Diameter - 600 mm
Spindle Taper - MT 6
Spindle Speeds - 3.6 rpm to 900 rpm
Chuck Speeds - 3.6 rpm to 140 rpm
- Complete with Facing Chuck.
- Equipped with 3-Axis DRO.
- Machine is in excellent working condition.
Specifications
| Manufacturer | TOS |
| Model | H-100 |
| Condition | Used |
| Stock Number | 2197 |
| Make | TOS (Czech Republic) |
| Model | H-100 |
| Spindle Diameter | 100 mm |
| Table Size | 1240 mm x 1120 m |
| Cross Travel | 1250 mm |
| Vertical Travel | 1120 mm |
| Longitudinal Travel | 1800 mm |
| Spindle Travel | 900 mm |
| Facing Chuck Diameter | 600 mm |
| Spindle Taper | MT 6 |
| Spindle Speeds | 3.6 rpm to 900 rpm |
| Chuck Speeds | 3.6 rpm to 140 rpm |
| Other Information 1 | - Complete with Facing Chuck. |
| Other Information 2 | - Equipped with 3-Axis DRO. |
| Other Information 3 | - Machine is in excellent working condition. |
