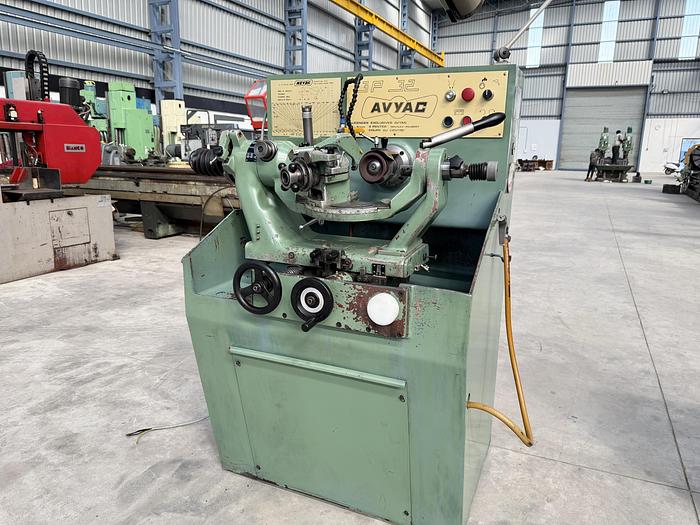

Avyac France Drills and End-Mills Grinding Machine

Avyac (France) make Precision Drill and End Mill Grinder in excellent working condition. The model of the machine is 3P-32 and the Drill Grinding Capacity is from 3 mm to 40 mm. The machine is suitable for ordinary Twist Drills, Step Drills, Cruciform Drills, Flat Drills, Carbide Drills, Sheet Metal Drills, End Mills, etc. The machine is complete with a Special Head-Stock for a Capacity upto 40 mm. The machine is complete with lots of accessories including spare Cams, Diamond Wheels, complete set of Collets, Operating Manuals, Electrical Drawings, Coolant Tank & Pump etc. The technical details are as follows -

Make - Avyac (France)

Model - 3P 32

Drill Grinding Capacity - 3 mm to 40 mm

Point Angle - 90 degree to 180 degree

Spindle Speeds - 4800 rpm

Max. Grinding Wheel Diameter - 102 mm

Max. Step Height for Step Drills - 50 mm

Longitudinal Travel of the Carriage - 174 mm

Cross Travel of the Carriage - 70 mm

- Complete with lots of accessories including spare Head-Stocks.

- Complete with Index Plates, Cams, Diamond Grinding Wheels etc.

- With a complete set of Collets, Drawbars, and many other accessories.

- Complete with Coolant Tank and Pump.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.
