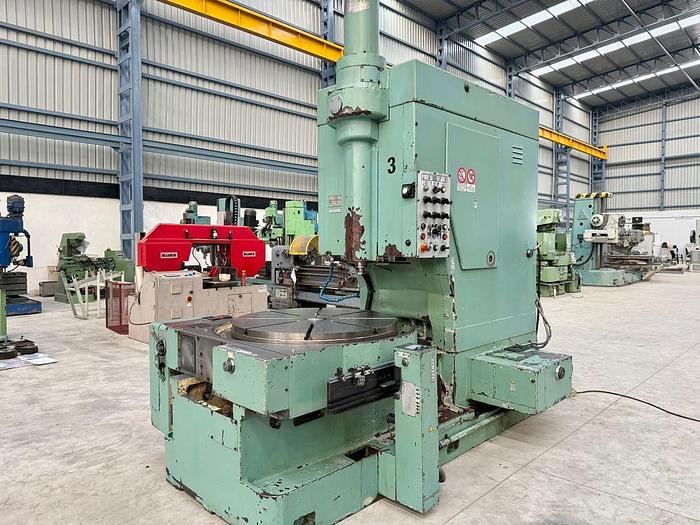

Stanko 5M161 Heavy-Duty Gear Shaper Machine

Heavy-Duty Gear Shaping Machine made by Stanko (Russia) in excellent working condition. The model of the machine is 5M161 and the Maximum Module Capacity is 12 Modules. The Maximum Diameter of the Gear is 1250 mm and the Maximum Stroke Length is 200 mm. The machine is complete with its Change Gears, Operating Manuals, Electrical Drawings, Hydraulic & Mechanical Drawings, and other accessories etc. The overall condition of this machine is as good as new and all the features are working perfectly fine. The technical details are as follows -

Make - Stanko (Russia)

Model - 5M161

Max. Module Capacity - 12 Modules

Max. Length of Stroke - 200 mm

Max. Diameter of Gear - 1250 mm

Table Diameter - 1000 mm

Stroke Rate - 33 strokes/min to 212 strokes/min

Height between Table Top to Machine Body - 345 mm

Table Bore Diameter - 120 mm

Weight of the Machine - 10.7 tons (approximately)

- Motorised Rapid Travels in Spindle Rotation & Spindle Travel.

- Motorised Rapid Travels in Table Rotation & Table Travel.

- Complete with Change Gears, Operating Manual, Electrical Drawings etc.

- Machine is in excellent working condition.
