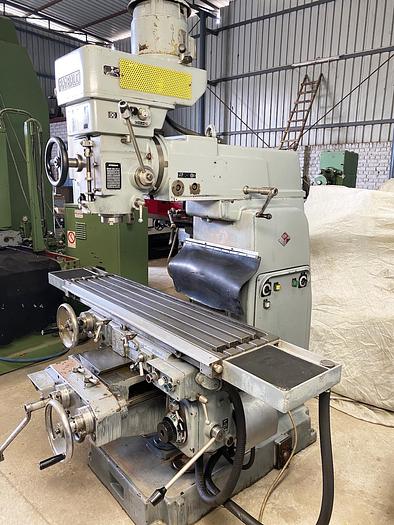

Rambaudi M3 Vertical Milling Machine
Rambaudi M3 Vertical Milling Machine
Contact us for price
Location:New Delhi, India
orCall +91 98182 75782
Description
Excellent condition Rambaudi M3 Vertical Milling Machine located in New Delhi, India. Please click request price for more information. The technical details of the machine is as follows - Make - Rambaudi (Italy) Model - M3 Table Size - 300 mm x 1310 mm XYZ Travels - 950 mm x 300 mm x 450 mm Spindle Speeds - 50 rpm to 2500 rpm Spindle Taper - ISO 40 Spindle Vertical Travel - 125 mm Table Feed Rates - 12 mm/min to 550 mm/min Spindle Diameter - 110 Spindle Feed Travel Rates - 0.035 mm/rev to 0.15 mm/rev Max. Distance between Spindle to Table Top - 480 mm Horizontal Ram Travel - 400 mm - Complete with leveling pads, coolant pump, etc. - Machine is in excellent working condition.
Specifications
| Manufacturer | Rambaudi |
| Model | M3 |
| Condition | Used |
| Table Size | 300 mm x 1310 mm |
| XYZ Travels | 950 mm x 300 mm x 450 mm |
| Spindle Speeds | 50 rpm to 2500 rpm |
| Spindle Taper | ISO 40 |
| Spindle Vertical Travel | 125 mm |
| Table Feed Rates | 12 mm/min to 550 mm/min |
| Spindle Diameter | 110 |
| Spindle Feed Travel Rates | 0.035 mm/rev to 0.15 mm/rev |
| Max Distance between Spindle to Table Top | 480 mm |
| Horizontal Ram Travel | 400 mm |
| Other information | Complete with leveling pads, coolant pump, etc. |
| Other Informaton 2 | Machine is in excellent working condition. |
