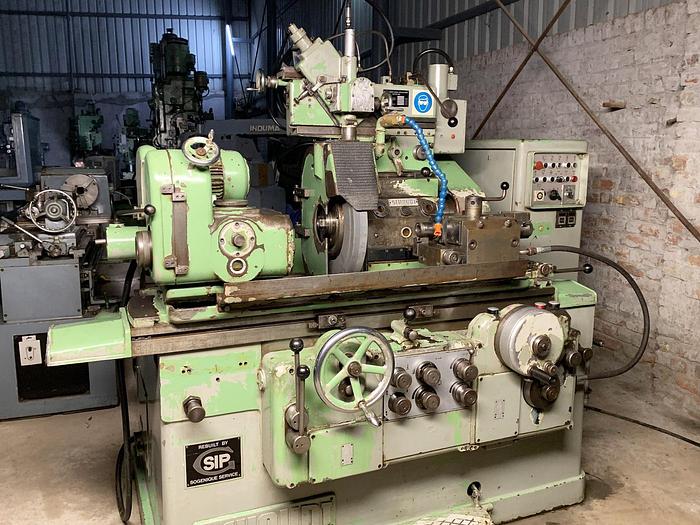

Schaudt High Production Cylindrical Grinder
Schaudt High Production Cylindrical Grinder
Contact us for price
Location:New Delhi, India
Description
Excellent condition Schaudt 500 Cylindrical Grinder located in New Delhi, India. Please click request price for more information. The technical details of the machine is as follows - Make - Schaudt (Germany) Modle No. - 500 Center Height - 150 mm Max. Diameter of Job - 300 mm Max. Length of Job - 500 mm Grinding Wheel Size - 500 mm Diameter x 75 mm Width Work-Head Speeds - 45 rpm to 500 rpm - Equipped with Angular Wheel Dresser and Straight Wheel Dressers. - Complete Auto-Cycle Operation for high productions. - With Automatic Depth Adjustment and Hydraulic Tailstock. - Automatic Wheel Dressing system with auto-depth adjustment. - Machine has been refurbished & rebuilt by SIP. - Machine is in excellent working condition.
Specifications
| Manufacturer | Schaudt |
| Model | 500 |
| Condition | Used |
| Center Height | 150 mm |
| Max Diameter of Job | 300 mm |
| Max Length of Job | 500 mm |
| Grinding Wheel Size | 500 mm Diameter x 75 mm Width |
| Work Head Speeds | 45 rpm to 500 rpm |
| Other Specification 1 | Equipped with Angular Wheel Dresser and Straight Wheel Dressers. |
| Other Specification 2 | Complete Auto-Cycle Operation for high productions. |
| Other Specification 3 | With Automatic Depth Adjustment and Hydraulic Tailstock |
| Other Specification 4 | Automatic Wheel Dressing system with auto-depth adjustment. |
| Other Specification 5 | Machine has been refurbished & rebuilt by SIP |
| Other information | Machine is in excellent working condition. |
