Ferrari Cylindrical Grinding Machine
Ferrari Cylindrical Grinding Machine
Contact us for price
Location:New Delhi, India
Description

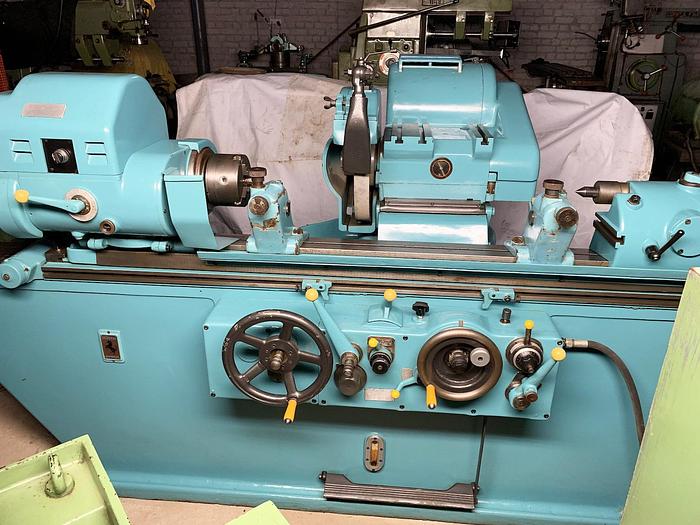

Excellent condition Ferrari 1000 Grinding Machine located in New Delhi, India. Please click request price for more information. The technical details of the machine is as follows - Make - Ferrari (Italy) Modle -1000 Center Height - 180 mm Max. Length of Job - 1000 mm Max. Diameter of Job - 360 mm Grinding Wheel Size - 450 mm Diameter x 75 mm Width Workhead Speeds - 23 rpm to 265 rpm - Complete with 3 x 2-point steady, wheel balancing stand etc. - Complete with Straight and Angular Wheel Dressers. - Complete with chuck, coolant pump & tank etc. - With lots of different types of centers and other accessories etc. - Hydraulic Rapid Forward/Backward Movement of Wheel-Head. - Equipped with Hydraulic Tailstock. - Machine is in excellent working condition.
Specifications
| Manufacturer | Ferrari |
| Model | 1000 |
| Condition | Used |
| Center Height | 180 mm |
| Max Length of Job | 1000 mm |
| Max Diameter of Job | 360 mm |
| Grinding Wheel Size | 450 mm Diameter x 75 mm Width |
| Workhead Speeds | 23 rpm to 265 rpm |
| Other Specification 1 | Complete with 3 x 2-point steady, wheel balancing stand etc. |
| Other Specification 2 | Complete with Straight and Angular Wheel Dressers. |
| Other Specification 3 | Complete with chuck, coolant pump & tank etc. |
| Other Specification 4 | With lots of different types of centers and other accessories etc. |
| Other Specification 5 | Hydraulic Rapid Forward/Backward Movement of Wheel-Head. |
| Other Specification 6 | Equipped with Hydraulic Tailstock. |
| Other information | Machine is in excellent working condition. |
