Gambin 10N Milling Machine
Gambin 10N Milling Machine
Contact us for price
Location:New Delhi, India
orCall +91 98182 75782
Description

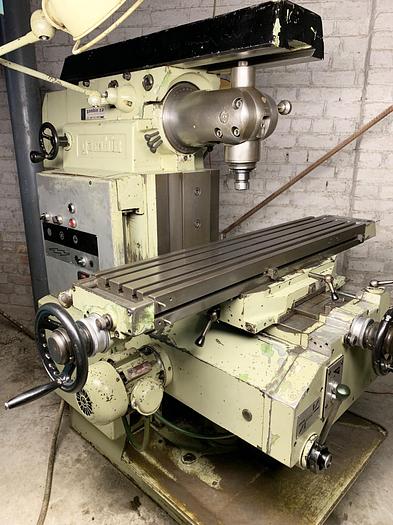

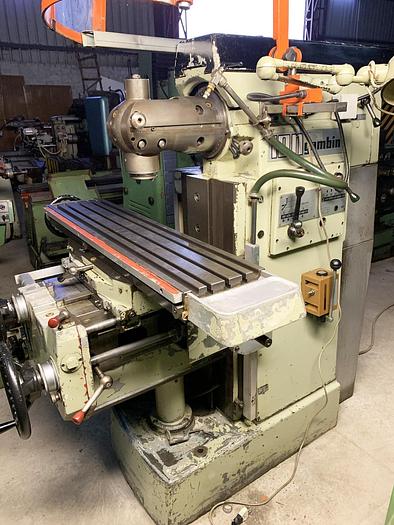

Excellent condition Gambin 10N Milling Machine located in New Delhi, India. Please click request price for more information. The technical details of the machine is as follows - Make - Gambin (France) Model - 10N Table Size - 230 mm x 1040 mm XYZ Travel - 600 mm x 230 mm x 560 mm Spindle Speeds - 25 rpm to 1600 rpm Spindle Taper - ISO 40 Table Feed Rate - 10 mm/min to 630 mm/min Horizontal RAM Travel - 210 mm - Double-Swivel type Universal Milling Head. - Machine has Horizontal RAM travel in milling head. - Equipped with Coolant pump. - Machine is in excellent working condition.
Specifications
| Manufacturer | Gambin |
| Model | 10N |
| Condition | Used |
| Table Size | 230 mm x 1040 mm |
| XYZ Travel | 600 mm x 230 mm x 560 mm |
| Spindle Speeds | 25 rpm to 1600 rpm |
| Spindle Taper | ISO 40 |
| Table Feed Rate | 10 mm/min to 630 mm/min |
| Horizontal RAM Travel | 210 mm |
| Other Specification 1 | Double-Swivel type Universal Milling Head. |
| Other Specification 2 | Machine has Horizontal RAM travel in milling head. |
| Other Specification 3 | Equipped with Coolant pump. |
| Other information | Machine is in excellent working condition. |
