Tiger Horizontal Vertical Milling Machine
Tiger Horizontal Vertical Milling Machine
Contact us for price
Location:New Delhi, India
Description

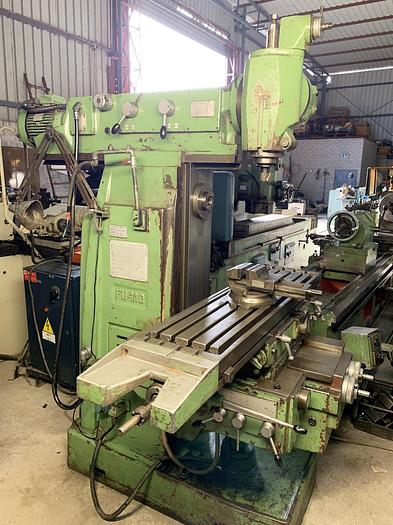

Excellent condition Tiger FU110 Horizontal Vertical Milling Machine located in New Delhi, India. Please click request price for more information. The technical details of the machine is as follows - Make - Tiger (Italy) Model - FU110 Table Size - 290 mm x 1200 mm XYZ Travel - 950 mm x 325 mm x 450 mm Horizontal Spindle Speeds - 30 rpm to 1600 rpm Vertical Spindle Speeds - 100 rpm to 1430 rpm Table Travel Feed Rates - 10 mm/min to 460 mm/min Spindle Taper - ISO 40 - Double Swivel Vertical Milling Head. - Downward Spindle Travel of Vertical Milling Head. - Universal Rotating type Table. - Horizontal Movement on Ram of Vertical Milling for extra width jobs. - Both Horizontal & Vertical Milling Spindles can work together. - Complete with rotating type vice, coolant pump, etc. - Machine is in excellent working condition.
Specifications
| Manufacturer | Tiger |
| Model | FU110 |
| Condition | Used |
| Table Size | 290 mm x 1200 mm |
| XYZ Travel | 950 mm x 325 mm x 450 mm |
| Horizontal Spindle Speeds | 30 rpm to 1600 rpm |
| Vertical Spindle Speeds | 100 rpm to 1430 rpm |
| Table Travel Feed Rates | 10 mm/min to 460 mm/min |
| Spindle Taper | ISO 40 |
| Other Specification 1 | Double Swivel Vertical Milling Head. |
| Other Specification 2 | Downward Spindle Travel of Vertical Milling Head |
| Other Specification 3 | Universal Rotating type Table |
| Other Specification 4 | Horizontal Movement on Ram of Vertical Milling for extra width jobs |
| Other Specification 5 | Both Horizontal & Vertical Milling Spindles can work together. |
| Other Specification 6 | Complete with rotating type vice, coolant pump, etc |
| Other information | Machine is in excellent working condition. |
