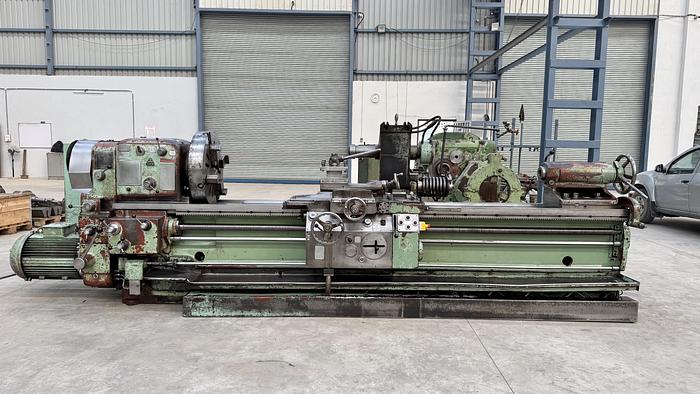

TOS SU63A / 2750 Heavy Duty Lathe Machine

orCall +91 98182 75782

Description

Heavy-Duty Lathe Machine made by TOS (Czech Republic) in excellent working condition. The model of the machine is SU-63A and the Center Height is 315 mm and the Length of Job is 2750 mm. The machine is equipped with Taper Turning Attachment and also with a special Deep-Hole Drilling Attachment. The technical details are as follows -

Make - TOS (Czech Republic)

Model - SU-63A

Center Height - 315 mm

Max. Length of Job - 2750 mm

Max. Diameter of Job over Bed - 630 mm

Max. Diameter over Cross-Slide - 360 mm

Spindle Speeds - 8 rpm to 1180 rpm

Bed Width - 565 mm

Chuck Diameter - 650 mm

Spindle Bore - 60 mm

Swing Diameter near Chuck - 700 mm

- Equipped with a special Deep Hole Drilling Attachment.

- Equipped with Taper Turning Attachment.

- Complete with a 3-point steady rest, boring bars, etc.

- Equipped with Coolant Tank, Tray & Pump.

- With Motorised Rapid Travels on the Carriage & Cross-Slide.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.

Specifications

Manufacturer	TOS
Model	SU-63A
Condition	Used
Stock Number	2141
Make	TOS (Czech Republic)
Model	SU-63A
Center Height	315 mm
Max. Length of Job	2750 mm
Max. Diameter of Job over Bed	630 mm
Max. Diameter over Cross-Slide	360 mm
Spindle Speeds	8 rpm to 1180 rpm
Bed Width	565 mm
Chuck Diameter	650 mm
Spindle Bore	60 mm
Swing Diameter near Chuck	700 mm
Other Information 1	- Equipped with a special Deep Hole Drilling Attachment.
Other Information 2	- Equipped with Taper Turning Attachment.
Other Information 3	- Complete with a 3-point steady rest, boring bars, etc.
Other Information 4	- Equipped with Coolant Tank, Tray & Pump.
Other Information 5	- With Motorised Rapid Travels on the Carriage & Cross-Slide.
Other Information 6	- Operating Manual and Electrical Drawings are available.
Other Information 7	- Machine is in excellent working condition.
