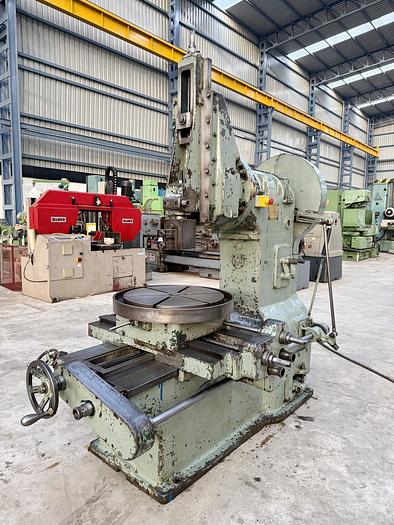

Burdett England 200 mm Stroke Vertical Slotting Machine
Burdett England 200 mm Stroke Vertical Slotting Machine
Contact us for price
Location:New Delhi, India
Description
Burdett (England) make Vertical Slotting Machine in excellent working condition. The model of the machine is Type VS No. 20 and the Maximum Stroke Length is 200 mm. The machine has Feed Travels on the Longitudinal Travel, Cross Travel and on Table Rotation. The technical details are as follows -
Make - Burdett (England)
Model - Type VS No. 20
Max. Stroke Length - 200 mm
Table Diameter - 510 mm
Longitudinal Travel - 550 mm
Cross Travel - 425 mm
Height between Table to Machine Body - 350 mm
Distance between Tool-Head edge to Column - 620 mm
Max. Distance between Table Center to Column - 870 mm
Stroke Rate - 24 strokes/min to 90 strokes/min
Swivel Angle of Head - +10 degree to -10 degree
- Feed Travels on Table Rotation and on Cross & Longitudinal Travels.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Burdett |
| Model | Type VS No. 20 |
| Condition | Used |
| Stock Number | 2128 |
| Make | Burdett (England) |
| Model | Type VS No. 20 |
| Max. Stroke Length | 200 mm |
| Table Diameter | 510 mm |
| Longitudinal Travel | 550 mm |
| Cross Travel | 425 mm |
| Height between Table to Machine Body | 350 mm |
| Distance between Tool-Head edge to Column | 620 mm |
| Max. Distance between Table Center to Column | 870 mm |
| Stroke Rate | 24 strokes/min to 90 strokes/min |
| Swivel Angle of Head | +10 degree to -10 degree |
| Other Information 1 | - Feed Travels on Table Rotation and on Cross & Longitudinal Travels. |
| Other Information 2 | - Machine is in excellent working condition. |
