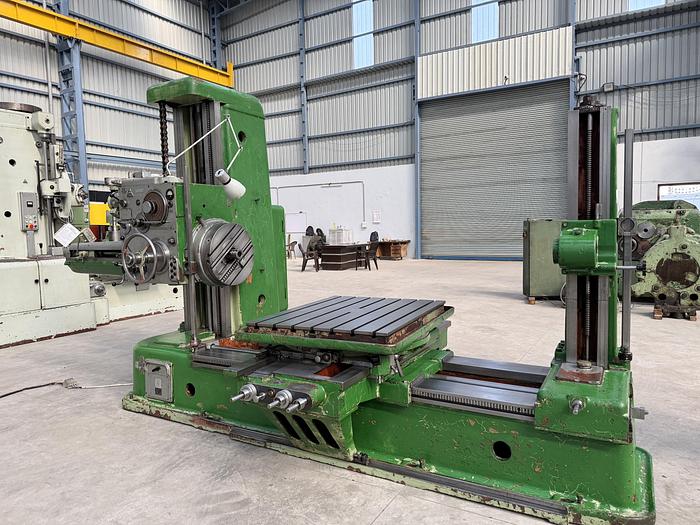

TOS H-80 Horizontal Boring Machine
TOS H-80 Horizontal Boring Machine
Contact us for price
Location:New Delhi, India
Description
TOS (Czech Republic) make Horizontal Boring Machine in excellent working condition. The model of the machine is H-80 and the Table Size is 1120 mm x 900 mm. The machine is complete with its Facing Chuck and Tail-Stock. The machine is with many tools, cutters, tool holders, boring bars, angle plate, and also its Operating Manual. The technical details are as follows -
Make - TOS (Czech Republic)
Model - H-80
Spindle Diameter - 80 mm
Table Size - 1120 mm x 900 mm
Cross Travel - 1000 mm
Vertical Travel - 900 mm
Longitudinal Travel - 1100 mm (with Tail-Stock)
Spindle Travel - 700 mm
Facing Chuck Diameter - 480 mm
Spindle Taper - MT 5
Spindle Speeds - 5.6 rpm to 1000 rpm
Chuck Speeds - 5.6 rpm to 150 rpm
Max. Job Weight - 2.4 Tons
- Complete with Facing Chuck and Tail-Stock.
- Complete with many Tools, Cutters, Boring Bars, Angle Plate, etc.
- Operating Manual of the machine is available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | TOS |
| Model | H-80 |
| Condition | Used |
| Stock Number | 2194 |
| Make | TOS (Czech Republic) |
| Model | H-80 |
| Spindle Diameter | 80 mm |
| Table Size | 1120 mm x 900 mm |
| Cross Travel | 1000 mm |
| Vertical Travel | 900 mm |
| Longitudinal Travel | 1100 mm (with Tail-Stock) |
| Spindle Travel | 700 mm |
| Facing Chuck Diameter | 480 mm |
| Spindle Taper | MT 5 |
| Spindle Speeds | 5.6 rpm to 1000 rpm |
| Chuck Speeds | 5.6 rpm to 150 rpm |
| Max. Job Weight | 2.4 Tons |
| Other Information 1 | - Complete with Facing Chuck and Tail-Stock. |
| Other Information 2 | - Complete with many Tools, Cutters, Boring Bars, Angle Plate, etc. |
| Other Information 3 | - Operating Manual of the machine is available. |
| Other Information 4 | - Machine is in excellent working condition. |
