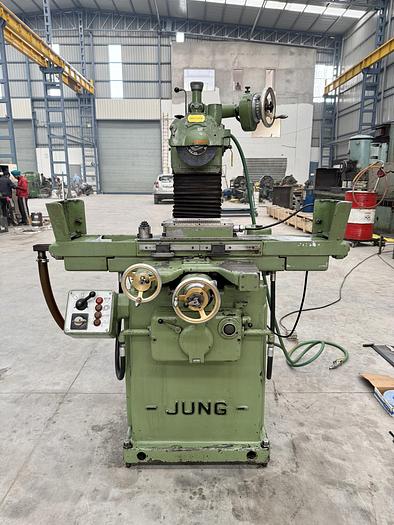

Jung Germany F-40 Surface Grinder Machine
Jung Germany F-40 Surface Grinder Machine
Contact us for price
Location:New Delhi, India
orCall +91 98182 75782
Description
Jung (Germany) make Surface Grinding Machine in excellent working condition. The model of the machine is F-40 and the Grinding Capacity is 150 mm x 400 mm. The machine has Micro-Feed Travels on the Cross Travels and on the Vertical Travels. The technical details are as follows -
Make - Jung (Germany)
Model - F-40
Grinding Capacity - 150 mm x 400 mm
Longitudinal Travel - 470 mm
Cross Travel - 180 mm
Current Magnet Size - 150 mm x 300 mm
Max. Grinding Wheel Diameter - 200 mm
Max. Grinding Wheel Width - 20 mm
Max. Height between Table Top to Wheel-Center - 405 mm
- Micro-Feed Travels on Vertical and Cross Travels.
- Equipped with a Top Mounted Wheel Dresser.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Jung |
| Model | F-40 |
| Condition | Used |
| Stock Number | 2059 |
| Make | Jung (Germany) |
| Model | F-40 |
| Grinding Capacity | 150 mm x 400 mm |
| Longitudinal Travel | 470 mm |
| Cross Travel | 180 mm |
| Current Magnet Size | 150 mm x 300 mm |
| Max. Grinding Wheel Diameter | 200 mm |
| Max. Grinding Wheel Width | 20 mm |
| Max. Height between Table Top to Wheel-Center | 405 mm |
| Other Information 1 | - Micro-Feed Travels on Vertical and Cross Travels. |
| Other Information 2 | - Equipped with a Top Mounted Wheel Dresser. |
| Other Information 3 | - Machine is in excellent working condition. |
