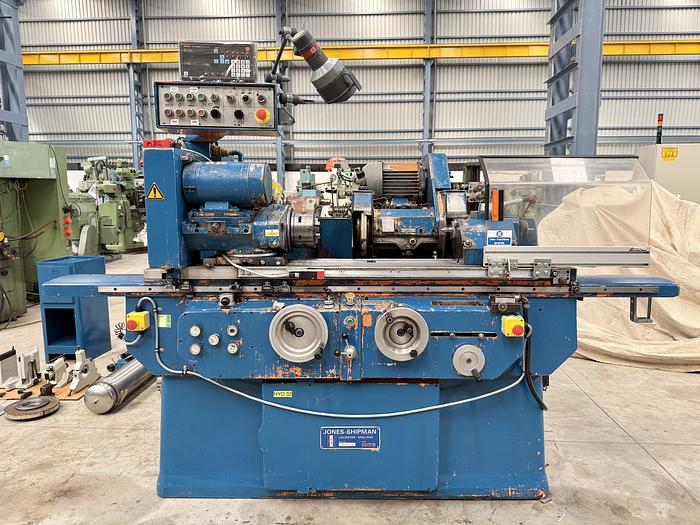

Jones & Shipman 1076 Precision Universal Cylindrical Grinder

High Precision & High Production type Universal Cylindrical Grinding Machine made by Jones & Shipman (England) in excellent working condition. The model of the machine is 1076 and it is a High Precision machine having a least count of 1 micron (0.001 mm). The machine is equipped with a 2 Axis DRO and is complete with Job steadies, Wheel Flange, Wheel Balancing Stand, Coolant Filtration Unit, Operating Manual, Electrical Drawings etc. The machine is suitable for High Production Jobs as it is a complete Auto-Cycle type machine. It is also very suitable for Tool Room type applications. The technical details are as follows -

Make - Jones & Shipman (England)

Model - 1076

Center Height - 127 mm

Max. Diameter of Job - 254 mm

Max. Length of Job - 686 mm

Grinding Wheel Size - Diameter 300 mm x 38 mm Width

Table Rotation - +18 degree to -16 degree

Work-Head Speeds - 30 rpm to 300 rpm (Infinitely Variable)

Least Count of the Wheel-Head Travel - 1 Micron (0.001 mm)

- Equipped with Internal Grinding Attachment.

- Grinding Wheel can be mounted on both sides of the Wheel-Head.

- Equipped with a 2-Axis DRO.

- Micro-feed Adjustments in both Table & Wheel-Head Travels.

- Machine can be used in complete Auto-Cycle mode.

- Complete with 2-point Steady, 3-point Steady, Wheel Balancing Stand, Chuck etc.

- Complete with Coolant Filtration Unit, Coolant Tank & Pump.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.
