Picco Italy Horizontal Slot Milling Machine
Picco Italy Horizontal Slot Milling Machine
Contact us for price
Location:New Delhi, India
Description

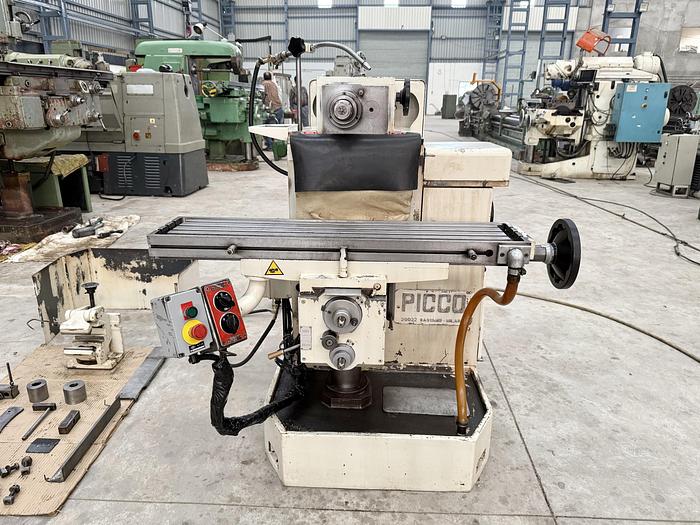

Automatic Horizontal Slot Milling Machine made by Picco (Italy) in excellent working condition. The machine can be used for Automatic Horizontal Milling of Keyways, Slots, Notches and Groves. The technical details are as follows -
Make - Picco (Italy)
Model - FC-18
Max. Width of Slot - 18 mm
Max. Length of Slot - 200 mm + Tool Diameter
Max. Length of Slot by using Table Travel - 800 mm
Table Size - 1010 mm x 230 mm
XYZ Travel of Travel - 600 mm x 190 mm x 300 mm
Spindle Speeds - 290 rpm to 2250 rpm
Spindle Taper - MT 3
Rate of Automatic Depth - 0.05 mm/stroke to 0.50 mm/stroke
Head Travel Speeds - 3 strokes/minute to 22 strokes/minute
- Complete with Vice, Coolant Pump and other accessories.
- Very Suitable for Milling of Keyways, Slots, Notches, Groves, etc.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Picco |
| Model | FC-18 |
| Condition | Used |
| Stock Number | 2088 |
| Make | Picco (Italy) |
| Model | FC-18 |
| Max. Width of Slot | 18 mm |
| Max. Length of Slot | 200 mm + Tool Diameter |
| Max. Length of Slot by using Table Travel | 800 mm |
| Table Size | 1010 mm x 230 mm |
| XYZ Travel of Travel | 600 mm x 190 mm x 300 mm |
| Spindle Speeds | 290 rpm to 2250 rpm |
| Spindle Taper | MT 3 |
| Rate of Automatic Depth | 0.05 mm/stroke to 0.50 mm/stroke |
| Head Travel Speeds | 3 strokes/minute to 22 strokes/minute |
| Other Information 1 | - Complete with Vice, Coolant Pump and other accessories. |
| Other Information 2 | - Very Suitable for Milling of Keyways, Slots, Notches, Groves, etc. |
| Other Information 3 | - Machine is in excellent working condition. |
