Tiger FU-140 Heavy-Duty Universal Milling Machine
Tiger FU-140 Heavy-Duty Universal Milling Machine
Contact us for price
Location:New Delhi, India
Description

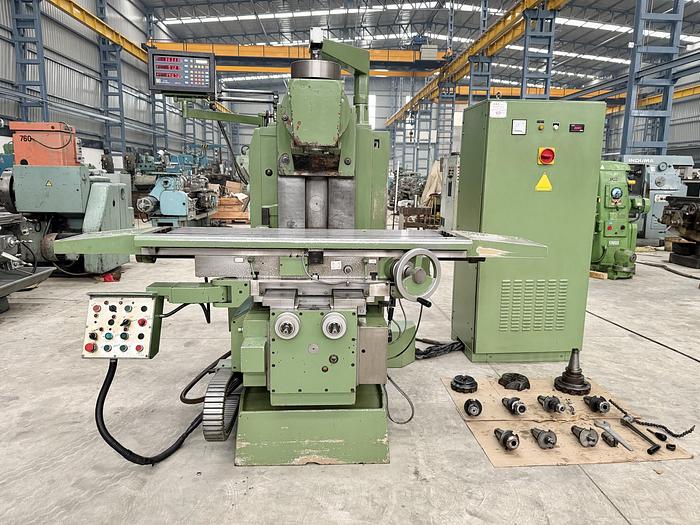

Tiger (Italy) make Heavy Duty Universal Milling Machine in excellent working condition. The model of the machine is FU-140 and the Table Size is 1500 mm x 340 mm. It is one of the latest models of the conventional machines made by the Tiger company. The machine is equipped with a 3-Axis DRO and can do Vertical as well as Horizontal Milling operations. The technical details are as follows -
Make - Tiger (Italy)
Model - FU-140
Table Size - 1500 mm x 340 mm
XYZ Travels - 1150 mm x 300 mm x 470 mm
Spindle Speeds - 25 rpm to 1400 rpm
Spindle Taper - ISO 50
Feed Rates of Travels - 8 mm/min to 1030 mm/min
Spindle Motor - 15 HP
- Equipped with 3-Axis DRO.
- With Infinitely Variable Feed Rates of Travels.
- Complete with many Cutters and Tool Holders.
- Rotating Type Universal Table.
- Vertical Head can be removed to do Horizontal Milling.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Tiger |
| Model | FU-140 |
| Condition | Used |
| Stock Number | 2148 |
| Make | Tiger (Italy) |
| Model | FU-140 |
| Table Size | 1500 mm x 340 mm |
| XYZ Travels | 1150 mm x 300 mm x 470 mm |
| Spindle Speeds | 25 rpm to 1400 rpm |
| Spindle Taper | ISO 50 |
| Feed Rates of Travels | 8 mm/min to 1030 mm/min |
| Spindle Motor | 15 HP |
| Other Information 1 | - Equipped with 3-Axis DRO. |
| Other Information 2 | - With Infinitely Variable Feed Rates of Travels. |
| Other Information 3 | - Complete with many Cutters and Tool Holders. |
| Other Information 4 | - Rotating Type Universal Table. |
| Other Information 5 | - Vertical Head can be removed to do Horizontal Milling. |
| Other Information 6 | - Machine is in excellent working condition. |
