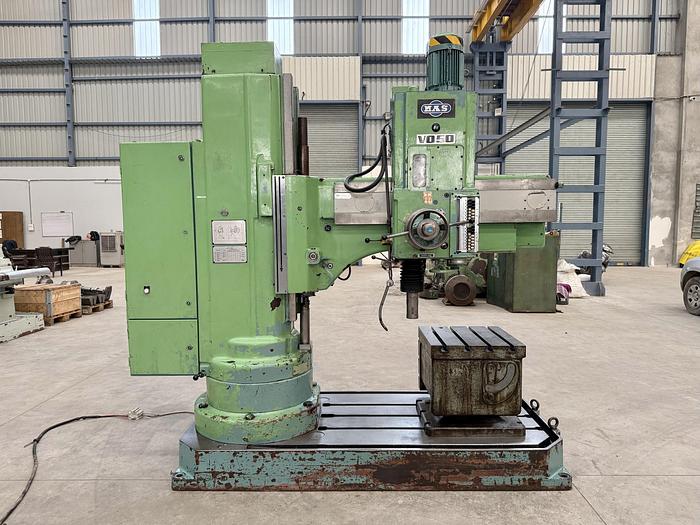

MAS Czech 60 mm Capacity Radial Drilling Machine

MAS (Czech Republic) make Radial Drilling Machine in excellent working condition. The model of the machine is VO-50 and the Drilling Capacity is 60 mm. The Spindle Taper is MT-5 and the Spindle Diameter is 85 mm. The machine is complete with a Tilting type Cube Table. The technical details are as follows -

Make - MAS (Czech Republic)

Model - VO-50

Drilling Capacity - 60 mm

Spindle Diameter - 85 mm

Arm Length - 1370 mm

Spindle Speeds - 28 rpm to 2500 rpm

Spindle Taper - MT 5

Spindle Feed Travel - 310 mm

Spindle Feed Rate of Travel - 0.05 mm/rev to 2.00 mm/rev

Vertical Travel of Arm - 750 mm

Table Size - 550 mm x 550 mm

Tilting Angle of Table - 0 degree to 90 degree

Clamping Type - Hydraulic

- Electrical Drawings & Operating Manual is available.

- Machine is in excellent working condition.
