Gambin France 11M Universal Milling Machine
Gambin France 11M Universal Milling Machine
Contact us for price
Location:New Delhi, India
Description

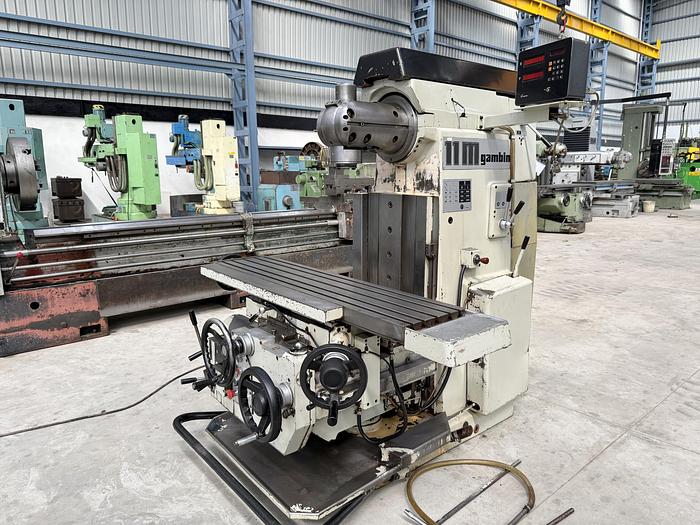

Universal Milling Machine made by Gambin (France) in excellent working condition. The model of the machine is 11M and the Table Size is 1290 mm x 300 mm. The machine has a Double Swivel type milling head suitable for Vertical, Angular and Horizontal Milling operations. The machine is also equipped with a DRO. The technical details are as follows -
Make - Gambin (France)
Model - 11M
Table Size - 1290 mm x 300 mm
XYZ Travel - 800 mm x 300 mm x 630 mm
Spindle Speeds - 25 rpm to 1800 rpm
Spindle Taper - ISO 40
Feed Rates of Travel - 12 mm/min to 630 mm/min
- Machine is equipped with DRO.
- Double Swivel type Milling Head for Horizontal, Vertical or Angular Milling.
- Foot Operated mechanism to stop & start the spindle rotation.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Gambin |
| Model | 11M |
| Condition | Used |
| Make | Gambin (France) |
| Model | 11M |
| Table Size | 1290 mm x 300 mm |
| XYZ Travel | 800 mm x 300 mm x 630 mm |
| Spindle Speeds | 25 rpm to 1800 rpm |
| Spindle Taper | ISO 40 |
| Feed Rates of Travel | 12 mm/min to 630 mm/min |
| Other Information 1 | - Machine is equipped with DRO. |
| Other Information 2 | - Double Swivel type Milling Head for Horizontal, Vertical or Angular Milling. |
| Other Information 3 | - Foot Operated mechanism to stop & start the spindle rotation. |
| Other Information 4 | - Machine is in excellent working condition. |
