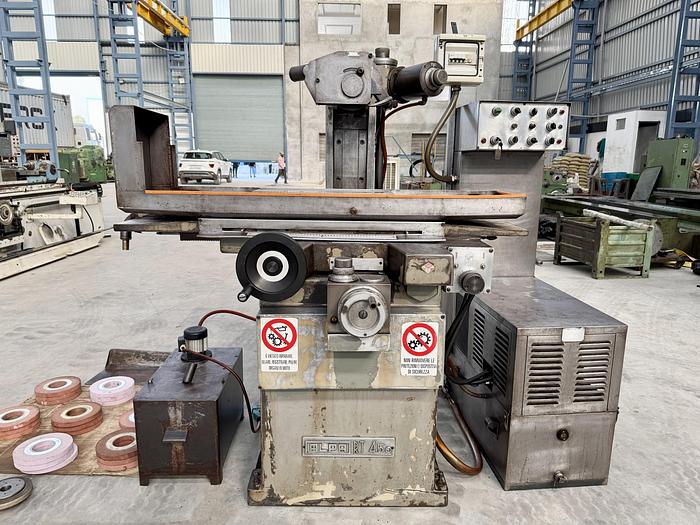

Alpa RT-450 Precision Surface Grinder Machine
Alpa RT-450 Precision Surface Grinder Machine
Contact us for price
Location:New Delhi, India
Description
Hydraulic High-Precision Surface Grinding Machine made by Alpa (Italy) in excellent working condition. The model of the machine is RT-450 and the Job Grinding Capacity is 200 mm x 450 mm. The machine has Micro-Feed Adjustments in both Vertical and Cross Travels and the Least Count of the Machine is 1 Micron (0.001 mm). The technical details are as follows -
Make - Alpa (Italy)
Model - RT 450
Job Grinding Capacity - 200 mm x 450 mm
Longitudinal Travel - 500 mm
Cross Travel - 240 mm
Current Magnet Size - 150 mm x 450 mm
Grinding Wheel Size - Diameter 203 mm x 20 mm Width
Max. Height between Table Top to Wheel-Center - 440 mm
Least Count of Vertical Travel - 1 Micron (0.001 mm)
Least Count of Cross Travel - 1 Micron (0.001 mm)
- Micro-Feed Adjustments in both Vertical & Cross Travel.
- Motorised Rapid Vertical Travel of the Wheel-Head.
- With lots of new spare Grinding Wheels & Wheel-Flange.
- Complete with Coolant Tank and Pump.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Alpa |
| Model | RT 450 |
| Condition | Used |
| Make | Alpa (Italy) |
| Model | RT 450 |
| Job Grinding Capacity | 200 mm x 450 mm |
| Longitudinal Travel | 500 mm |
| Cross Travel | 240 mm |
| Current Magnet Size | 150 mm x 450 mm |
| Grinding Wheel Size | Diameter 203 mm x 20 mm Width |
| Max. Height between Table Top to Wheel-Center | 440 mm |
| Least Count of Vertical Travel | 1 Micron (0.001 mm) |
| Least Count of Cross Travel | 1 Micron (0.001 mm) |
| Other Information 1 | - Micro-Feed Adjustments in both Vertical & Cross Travel. |
| Other Information 2 | - Motorised Rapid Vertical Travel of the Wheel-Head. |
| Other Information 3 | - With lots of new spare Grinding Wheels & Wheel-Flange. |
| Other Information 4 | - Complete with Coolant Tank and Pump. |
| Other Information 5 | - Machine is in excellent working condition. |
