Reishauer Switzerland ZA Gear Grinding Machine

Reishauer Switzerland ZA Gear Grinding Machine

Contact us for price

Location:New Delhi, India

orCall +91 98182 75782

Description

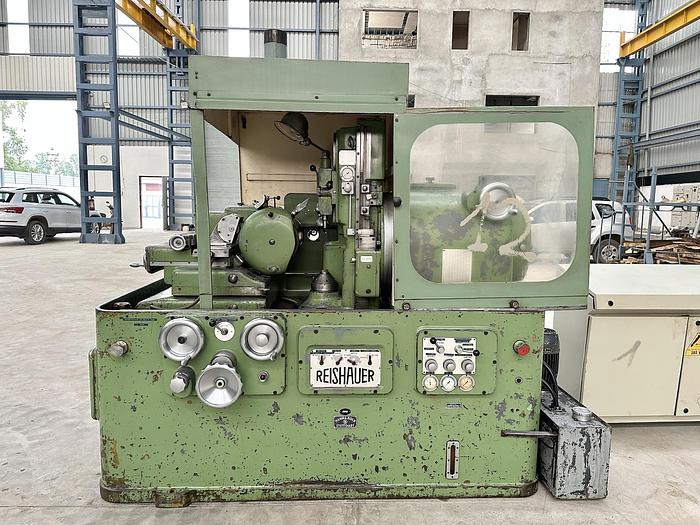

Reishauer (Switzerland) make Gear Grinding Machine in excellent working condition. The model of the machine is ZA and the Max. Gear Diameter is 240 mm. The machine is complete with Wheel Dresser, Mandrels, Crushers, Operating Manual, Electrical Drawings, Coolant Tank, Pump etc. The technical details are as follows -


Make - Reishauer (Switzerland)

Model - ZA

Max. Gear Diameter - 240 mm

Max. Module - 4 module

Min. Module - 0.5 module

Max. Grinding Length - 170 mm

Number of Teeth - 12 to 130

Max. Clamping Length - 450 mm

Max. Grinding Wheel Diameter - 350 mm

Maximum Helical Angle - 45 degrees (both sides)

Minimum Gear Diameter - 10 mm

- Equipped with Crusher type Wheel Dresser Unit.

- With 2 other Wheel Dressing Attachments, mandrels, fixtures etc.

- With spare Grinding Wheels & Flanges, many Crushers, Change Gears etc.

- Operating Manual & Electrical Drawings are available.

- Complete with Coolant Tank & Pump.

- Machine is in excellent working condition.

Show All

Specifications

ManufacturerReishauer
ModelNRK
ConditionUsed
MakeReishauer (Switzerland)
ModelZA
Max. Gear Diameter240 mm
Max. Module4 module
Min. Module0.5 module
Max. Grinding Length170 mm
Number of Teeth12 to 130
Max. Clamping Length450 mm
Max. Grinding Wheel Diameter350 mm
Maximum Helical Angle45 degrees (both sides)
Minimum Gear Diameter10 mm
Other Information 1- Equipped with Crusher type Wheel Dresser Unit.
Other Information 2- With 2 other Wheel Dressing Attachments, mandrels, fixtures etc.
Other Information 3- With spare Grinding Wheels & Flanges, many Crushers, Change Gears etc.
Other Information 4- Operating Manual & Electrical Drawings are available.
Other Information 5- Complete with Coolant Tank & Pump.
Other Information 6- Machine is in excellent working condition.
