Vernier France DB520 Bed Milling Machine
Vernier France DB520 Bed Milling Machine
Contact us for price
Location:New Delhi, India
Description

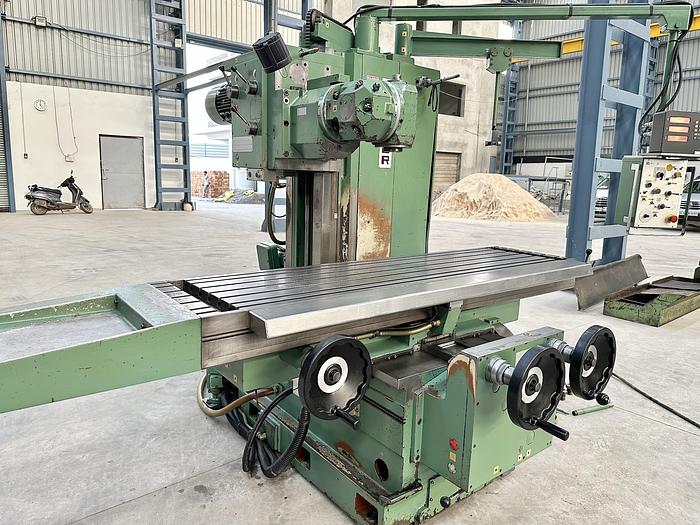

Vernier (France) make Bed type Milling Machine in excellent working condition. The model of the machine is DB 520 and the Table Size is 2000 mm x 500 mm. The machine is complete with a Double Swivel Type Milling Head and also equipped with a 3-Axis DRO. The Vertical Milling Head can be removed to do Horizontal Milling Operations. The technical details are as follows -
Make - Vernier (France)
Model - DB 520
Table Size - 2000 mm x 500 mm
XYZ Travel - 1500 mm x 575 mm x 600 mm
Spindle Speeds - 32 rpm to 1600 rpm
Spindle Taper - ISO 40
Feed Rates of Travel - 10 mm/min to 1000 mm/min
Max. Height between Table to Vertical Spindle - 540 mm
Spindle Motor Power - 7.5 kW
- Equipped with a 3-Axis DRO.
- Complete with a Double-Swivel type Vertical Milling Head.
- Vertical Milling Head can be removed to do Horizontal Milling operations.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Vernier |
| Model | DB 520 |
| Condition | Used |
| Make | Vernier (France) |
| Model | DB 520 |
| Table Size | 2000 mm x 500 mm |
| XYZ Travel | 1500 mm x 575 mm x 600 mm |
| Spindle Speeds | 32 rpm to 1600 rpm |
| Spindle Taper | ISO 40 |
| Feed Rates of Travel | 10 mm/min to 1000 mm/min |
| Max. Height between Table to Vertical Spindle | 540 mm |
| Spindle Motor Power | 7.5 kW |
| Other Information 1 | - Equipped with a 3-Axis DRO. |
| Other Information 2 | - Complete with a Double-Swivel type Vertical Milling Head. |
| Other Information 3 | - Vertical Milling Head can be removed to do Horizontal Milling operations. |
| Other Information 4 | - Machine is in excellent working condition. |
