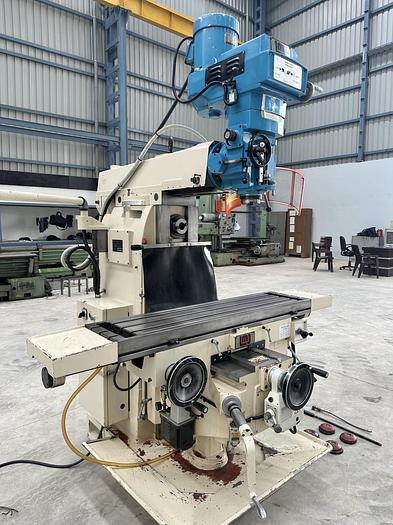

LMO France 1270 mm x 300 mm Double Spindle Milling Machine

Double Spindle Type Milling Machine made by LMO (France) in excellent working condition. The machine has a Turret type Vertical Spindle and a separate Horizontal Spindle. The machine has wide variety of applications as it can do Vertical Milling, Horizontal Milling, Drilling, Boring etc without the need to mount or dismount anything. It is very suitable for Tool-Room applications and for machine-shops where single machine is required for many different applications. The Table size of the machine is 1270 mm x 300 mm. The technical details are as follows -

Make - LMO (France)

Table Size - 1270 mm x 300 mm

Longitudinal Travel - 800 mm

Cross Travel - 350 mm

Max. Height between Table Top to Vertical Spindle - 600 mm

Spindle Taper - ISO 40

Horizontal Spindle Speeds - 65 rpm to 1500 rpm

Vertical Spindle Speeds - 80 rpm to 3800 rpm

Vertical Spindle Feed Travel - 120 mm

Vertical Spindle Diameter - 105 mm

- Rapid & Feed Travels on Longitudinal & Cross Travel of the Table.

- Motorised Rapid Vertical Travel of the Table.

- 2 x Brackets for Horizontal Milling Operations.

- Machine is in excellent working condition.
