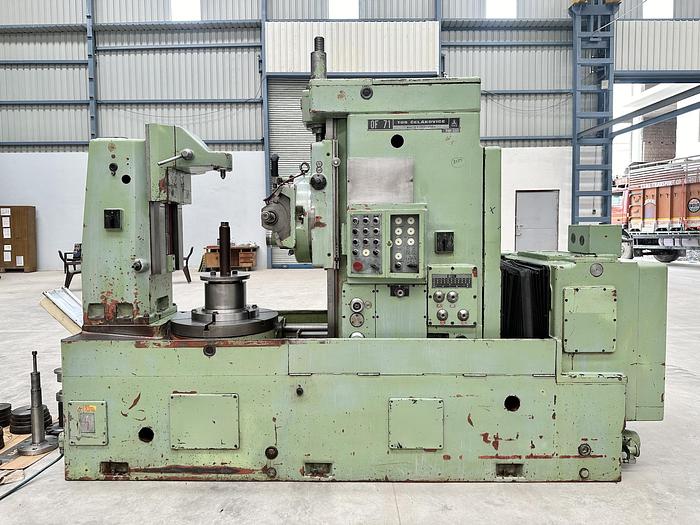

TOS OF-71 Gear Hobbing Machine
TOS OF-71 Gear Hobbing Machine
Contact us for price
Location:New Delhi, India
Description
TOS (Czech Republic) make Heavy Duty Gear Hobbing Machine in excellent working condition. The model of the machine is OF 71 and the Max. Gear Diameter is 710 mm. The machine is complete with many accessories including Change Gears, Arbours, Mandrels, Operating Manuals, Electrical Drawings etc. The technical details are as follows -
Make - TOS (Czech Republic)
Model - OF 71
Module Capacity - 7 Modules
Max. Gear Diameter - 710 mm
Max. Width of Gear - 335 mm
Table Diameter - 630 mm
Number of Teeth - 8 to 300
Max. Dimensions of Hob Cutter - Diameter 195 mm x 220 mm Length
Max. Gear Diameter (with Support) - 500 mm
Hob Speeds - 40 rpm to 315 rpm
Weight of Machine - 7 Tons Approx.
- Equipped with a feature of Single Indexing.
- Can work in Manual as well as in Auto-Cycle mode.
- Machine is complete with Change Gears, Arbours, Mandrels etc.
- Operating Manual, Electrical Drawings etc. are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | TOS |
| Model | OF 71 |
| Condition | Used |
| Make | TOS (Czech Republic) |
| Model | OF 71 |
| Module Capacity | 7 Modules |
| Max. Gear Diameter | 710 mm |
| Max. Width of Gear | 335 mm |
| Table Diameter | 630 mm |
| Number of Teeth | 8 to 300 |
| Max. Dimensions of Hob Cutter | Diameter 195 mm x 220 mm Length |
| Max. Gear Diameter (with Support) | 500 mm |
| Hob Speeds | 40 rpm to 315 rpm |
| Weight of Machine | 7 Tons Approx. |
| Other Information 1 | - Equipped with a feature of Single Indexing. |
| Other Information 2 | - Can work in Manual as well as in Auto-Cycle mode. |
| Other Information 3 | - Machine is complete with Change Gears, Arbours, Mandrels etc. |
| Other Information 4 | - Operating Manual, Electrical Drawings etc. are available. |
| Other Information 5 | - Machine is in excellent working condition. |
