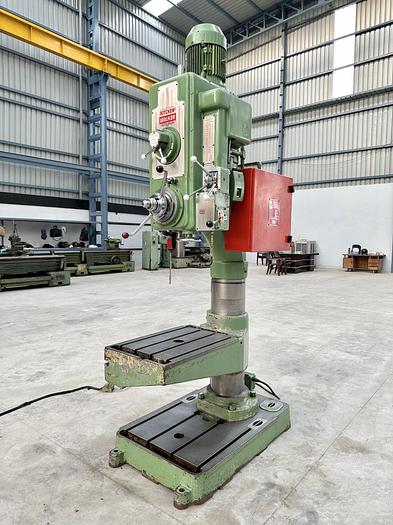

Kitchen Walker 63.5 mm Capacity Pillar Drilling Machine

Kitchen-Walker (England) make Heavy Duty Pillar type Drilling Machine in excellent working condition. The model of the machine is V-50 and the Drilling Capacity of the machine is 63 mm. The technical details are as follows -

Make - Kitchen Walker (England)

Model - V-50

Capacity - 63.5 mm

Spindle Diameter - 76 mm

Spindle Taper - MT 4

Spindle Feed Travel - 350 mm

Spindle Speeds - 25 rpm to 1560 rpm

Spindle Feed Travel Rates - 0.089 mm/rev to 1.04 mm/rev

Table Size - 690 mm x 510 mm

Base Clamping Size - 610 mm x 740 mm

Distance between Spindle Center to Vertical Pillar - 405 mm

Height between Spindle to Top of Base - 1185 mm

Max. Height between Spindle to Table Top - 740 mm

Min. Height between Spindle to Table Top - 310 mm

Vertical Pillar Diameter - 254 mm

- Machine is in excellent working condition.
