Colchester England 2000 mm Length Gap-Bed Lathe Machine
Colchester England 2000 mm Length Gap-Bed Lathe Machine
Contact us for price
Location:New Delhi, India
Description

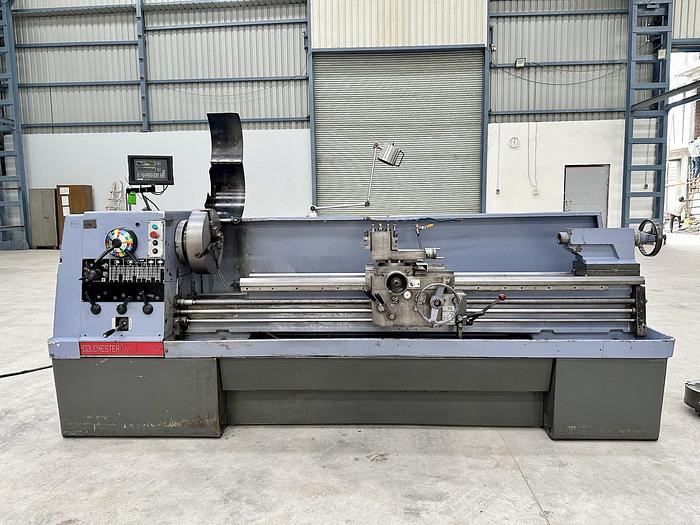

Colchester (England) make Gap Bed type Lathe Machine in excellent working condition. The model of the machine is Mascot 1600 and the Maximum Length of Job is 2030 mm. The machine is complete with its 3-Jaw Chuck, 4-Jaw Chuck, Job Steady and is also equipped with a 2-Axis DRO. The technical details are as follows -
Make - Colchester (England)
Model - Mascot 1600
Center Height - 225 mm
Max. Length of Job - 2030 mm
Max. Job Diameter over Bed - 440 mm
Max. Job Diameter over Cross-Slide - 265 mm
3-Jaw Chuck Diameter - 310 mm
4-Jaw Chuck Diameter - 410 mm
Spindle Speeds - 20 rpm to 1600 rpm
Bed Width - 342 mm
Max. Swing Diameter in Gap - 710 mm
Spindle Bore - 78 mm
- Complete with 3-Jaw Chuck and Job Steady.
- Equipped with a 2-Axis DRO.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Colchester |
| Model | Mascot 1600 |
| Condition | Used |
| Make | Colchester (England) |
| Model | Mascot 1600 |
| Center Height | 225 mm |
| Max. Length of Job | 2030 mm |
| Max. Job Diameter over Bed | 440 mm |
| Max. Job Diameter over Cross-Slide | 265 mm |
| 3-Jaw Chuck Diameter | 310 mm |
| 4-Jaw Chuck Diameter | 410 mm |
| Spindle Speeds | 20 rpm to 1600 rpm |
| Bed Width | 342 mm |
| Max. Swing Diameter in Gap | 710 mm |
| Spindle Bore | 78 mm |
| Other Information 1 | - Complete with 3-Jaw Chuck and Job Steady. |
| Other Information 2 | - Equipped with a 2-Axis DRO. |
| Other Information 3 | - Machine is in excellent working condition. |
