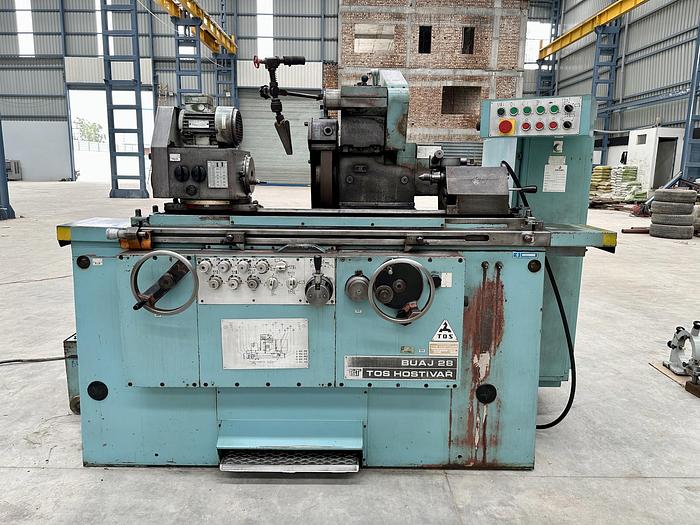

TOS BUAJ-28/650 Universal Cylindrical Grinder Machine
TOS BUAJ-28/650 Universal Cylindrical Grinder Machine
Contact us for price
Location:New Delhi, India
Description
TOS Hostivar (Czech Republic) make Universal Cylindrical Grinding Machine in excellent working condition. The model of this machine is BUAJ 28 and the Max. Length of Job is 650 mm.
It is one of the latest conventional series of Cylindrical Grinders made by TOS-Hostivar company having a Least Count of 1 Micron. The machine is complete with all accessories like Job Steady, Wheel Dresser, Magnetic Coolant Filtration Unit, Flanges, Wheels etc. The machine is also equipped with its Internal Grinding Attachment. The technical details are as follows -
Make - TOS - Hostivar (Czech Republic)
Model - BUAJ 28
Center Height - 145 mm
Max. Diameter of Job - 280 mm
Max. Length of Job - 650 mm
Grinding Wheel Size - 400 mm Diameter x 50 mm Width
Least Count of the Machine - 1 Micron
Work-Head Speeds - 22.4 rpm to 710 rpm
Wheel-Head Speeds - 2040 rpm / 2560 rpm
Internal Grinding Spindle Diameter - 80 mm
- Equipped with Internal Grinding Attachment.
- Complete with 2-point Steady, 3-point Steady, & Job Supports.
- Complete with Wheel Dressers, Chuck, Collet Sets, Mandrels, Centers etc.
- With spare Wheels Flange, Grinding Wheels, Splash Guards and other accessories.
- Complete with Magnetic Coolant Filtration Unit, Coolant Tank & Pump.
- Features like Delay, Auto-Slow, Plunge Grinding, Dressing Cycle etc.
- Features like Auto-Cut, Auto-Compensation, Rapid Table Travel, etc.
- Machine is one of the latest conventional models made by the TOS company.
- Operating Manual and Electrical Drawings are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | TOS - Hostivar |
| Model | BUAJ 28 |
| Condition | Used |
| Make | TOS - Hostivar (Czech Republic) |
| Model | BUAJ 28 |
| Center Height | 145 mm |
| Max. Diameter of Job | 280 mm |
| Max. Length of Job | 650 mm |
| Grinding Wheel Size | 400 mm Diameter x 50 mm Width |
| Least Count of the Machine | 1 Micron |
| Work-Head Speeds | 22.4 rpm to 710 rpm |
| Wheel-Head Speeds | 2040 rpm / 2560 rpm |
| Internal Grinding Spindle Diameter | 80 mm |
| Other Information 1 | - Equipped with Internal Grinding Attachment. |
| Other Information 2 | - Complete with 2-point Steady, 3-point Steady, & Job Supports. |
| Other Information 3 | - Complete with Wheel Dressers, Chuck, Collet Sets, Mandrels, Centers etc. |
| Other Information 4 | - With spare Wheels Flange, Grinding Wheels, Splash Guards and other accessories. |
| Other Information 5 | - Complete with Magnetic Coolant Filtration Unit, Coolant Tank & Pump. |
| Other Information 6 | - Features like Delay, Auto-Slow, Plunge Grinding, Dressing Cycle etc. |
| Other Information 7 | - Features like Auto-Cut, Auto-Compensation, Rapid Table Travel, etc. |
| Other Information 8 | - Machine is one of the latest conventional models made by the TOS company. |
| Other Information 9 | - Operating Manual and Electrical Drawings are available. |
| Other Information 10 | - Machine is in excellent working condition. |
