MAS 40 mm Capacity Radial Drilling Machine
MAS 40 mm Capacity Radial Drilling Machine
Contact us for price
Location:New Delhi, India
Description

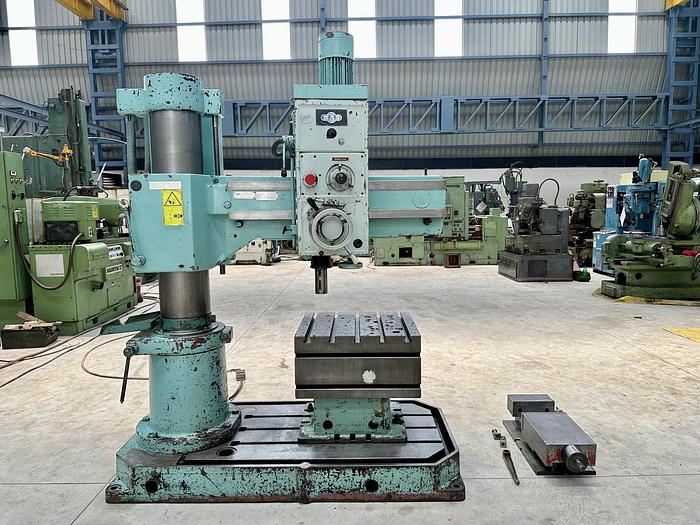

Radial Drilling Machine made by MAS (Czech Republic) in excellent working condition. The model of the machine is VO 32 and the Drilling Capacity of the Machine is 40 mm. The machine is complete with a Tilting type Cube Table. The technical details are as follows -
Make - MAS (Czech Republic)
Model - VO 32
Drilling Capacity - 40 mm
Spindle Diameter - 75 mm
Spindle Taper - MT 4
Arm Length - 1150 mm
Spindle Speeds - 90 rpm to 4500 rpm
Spindle Feed Travel - 250 mm
Spindle Feed Rate of Travel - 0.03 mm/rev to 0.31 mm/rev
Vertical Travel of Arm - 510 mm
Tilting Cube Table Size - 630 mm x 560 mm
Tilting Angle of Cube Table - 0 to 90 Degree
Clamping Type - Manual
- Complete with a Clamping Vice.
- Machine is in excellent working condition.
Specifications
| Manufacturer | MAS |
| Model | VO 32 |
| Condition | Used |
| Make | MAS (Czech Republic) |
| Model | VO 32 |
| Drilling Capacity | 40 mm |
| Spindle Diameter | 75 mm |
| Spindle Taper | MT 4 |
| Arm Length | 1150 mm |
| Spindle Speeds | 90 rpm to 4500 rpm |
| Spindle Feed Travel | 250 mm |
| Spindle Feed Rate of Travel | 0.03 mm/rev to 0.31 mm/rev |
| Vertical Travel of Arm | 510 mm |
| Tilting Cube Table Size | 630 mm x 560 mm |
| Tilting Angle of Cube Table | 0 to 90 Degree |
| Clamping Type | Manual |
| Other Information 1 | - Complete with a Clamping Vice. |
| Other Information 2 | - Machine is in excellent working condition. |
