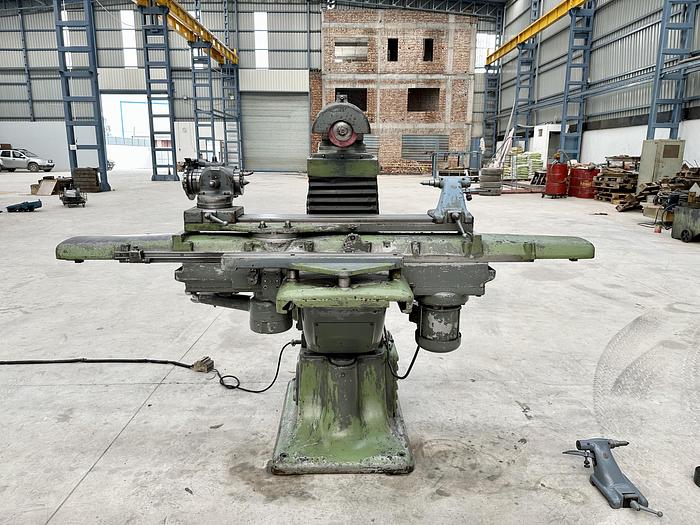

Schutte Germany Hydraulic Universal Tool & Cutter Grinder
Schutte Germany Hydraulic Universal Tool & Cutter Grinder
Contact us for price
Location:New Delhi, India
Description
Hydraulic Universal Tool & Cutter Grinding Machine made by Schutte (Germany) in excellent working condition. It is a Hydraulic type machine having Automatic Longitudinal Travel of the Table. The Longitudinal Travel of the Machine is 600 mm so it is suitable for bigger jobs as well. The technical details are as follows -
Make - Schutte (Germany)
Table Clamping Size - 110 mm x 1030 mm
Max. Swing Diameter on Work-Head - 260 mm
Max. Distance between Centers - 675 mm
Longitudinal Travel - 600 mm
Cross Travel - 255 mm
Vertical Travel - 300 mm
Spindle Speeds - 1325 rpm to 5300 rpm
Max. Grinding Wheel Diameter - 200 mm
Max. Height between Wheel-Center to Table Top - 320 mm
Min. Height between Wheel-Center to Table Top - 20 mm
- Automatic Hydraulic Longitudinal Travels of the Table.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Schutte |
| Model | 600 |
| Condition | Used |
| Make | Schutte (Germany) |
| Table Clamping Size | 110 mm x 1030 mm |
| Max. Swing Diameter on Work-Head | 260 mm |
| Max. Distance between Centers | 675 mm |
| Longitudinal Travel | 600 mm |
| Cross Travel | 255 mm |
| Vertical Travel | 300 mm |
| Spindle Speeds | 1325 rpm to 5300 rpm |
| Max. Grinding Wheel Diameter | 200 mm |
| Max. Height between Wheel-Center to Table Top | 320 mm |
| Min. Height between Wheel-Center to Table Top | 20 mm |
| Other Information 1 | - Automatic Hydraulic Longitudinal Travels of the Table. |
| Other Information 2 | - Machine is in excellent working condition. |
