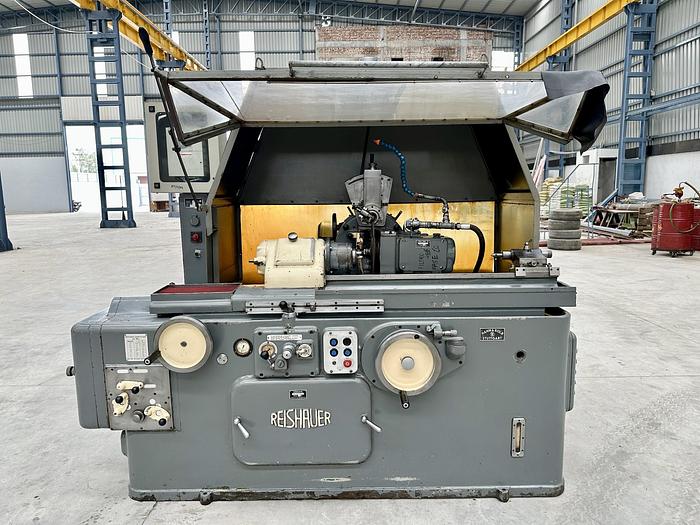

Reishauer NRK Thread Grinding Machine
Reishauer NRK Thread Grinding Machine
Contact us for price
Location:New Delhi, India
Description
Thread Grinding Machine made by Reishauer (Switzerland) in excellent working condition. The model of the machine is NRK. The machine is equipped with a single-point wheel dresser and is complete with spare Wheel-Flanges, Operating Manual, Change Gears and Coolant Tank & Pump. The technical details are as follows -
Make - Reishauer (Switzerland)
Model - NRK
Max. Grinding Length - 450 mm
Max. Distance between Centres - 700 mm
Job Diameter Range - 3 mm to 200 mm
Minimum Pitch - 0.4 mm
Maximum Pitch - 80 mm
Grinding Wheel Diameter - 350 mm
Max. Inclination of Wheel-Head - +25 degree to -25 degree
- Equipped with Relief Grinding Attachment.
- Equipped with a Single-Point Wheel Dresser.
- Complete with Change Gears, Coolant Tank and Pump.
- Operating Manual & Electrical Drawings are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Reishauer |
| Model | NRK |
| Condition | Used |
| Make | Reishauer (Switzerland) |
| Model | NRK |
| Max. Grinding Length | 450 mm |
| Max. Distance between Centres | 700 mm |
| Job Diameter Range | 3 mm to 200 mm |
| Minimum Pitch | 0.4 mm |
| Maximum Pitch | 80 mm |
| Grinding Wheel Diameter | 350 mm |
| Max. Inclination of Wheel-Head | +25 degree to -25 degree |
| Other Information 1 | - Equipped with Relief Grinding Attachment. |
| Other Information 2 | - Equipped with a Single-Point Wheel Dresser. |
| Other Information 3 | - Complete with Change Gears, Coolant Tank and Pump. |
| Other Information 4 | - Operating Manual & Electrical Drawings are available. |
| Other Information 5 | - Machine is in excellent working condition. |
