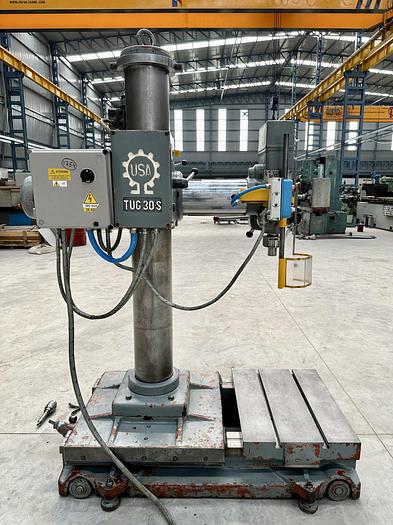

USA Italy Portable Universal Radial Drilling Machine

USA (Italy) make Universal type Radial Drilling Machine in excellent working condition. It is a Portable type Universal Radial Drill suitable for drilling at any angle and is very easy to set up for all types of regular and angular drilling applications. The Drilling Capacity in Steel of the machine is 30 mm and both the Head and the Column can be rotated 360 degrees. The technical details are as follows -

Make - USA (Italy)

Model - TUG 30-S

Drilling Capacity (in Steel) - 30 mm

Spindle Diameter - 60 mm

Spindle Feed Travel - 160 mm

Spindle Taper - MT 3

Longitudinal Travel of Head (In/Out) - 400 mm

Vertical Travel of Arm (Up/Down) - 980 mm

Spindle Speeds - 24 rpm to 2500 rpm

Table Size - 660 mm x 500 mm

Max. Height between Table To Spindle - 980 mm

Spindle Feed Travel Rates - 0.07 - 0.13 - 0.26 mm/revolution

Travel of Column on the Base - 600 mm

Head Rotation - 360 degrees

Column Rotation - 360 degrees

Indexing Positions in Head Rotation - Every 90 degrees

- Machine is in excellent working condition.
