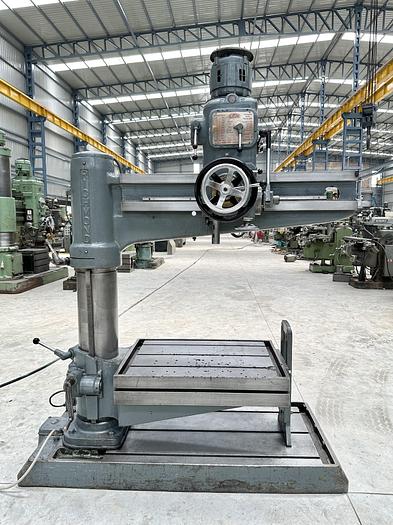

Richmond 32 mm Capacity Radial Drilling Machine

Richmond (England) make Radial Drilling Machine in excellent working condition. The model of the machine is S.R.2 and the Drilling Capacity is 32 mm. The machine has a Spindle Diameter of 76 mm and the Arm Length is 1270 mm. The technical details of the machine is as follows -

Make - Richmond (England)

Model - S.R.2

Drilling Capacity - 32 mm

Spindle Diameter - 76 mm

Arm Length - 1270 mm

Spindle Taper - MT 3

Spindle Speeds - 50 rpm to 750 rpm

Spindle Feed Travel - 185 mm

Spindle Feed Travel Rates - 0.127 mm/rev to 0.381 mm/rev

Maximum Height between Table Top to Spindle - 725 mm

Minimum Height between Table Top to Spindle - 220 mm

Maximum Height between Base Top to Spindle - 1175 mm

Table Size - 910 mm x 610 mm

Clamping Type - Manual

- Machine is in excellent working condition.
