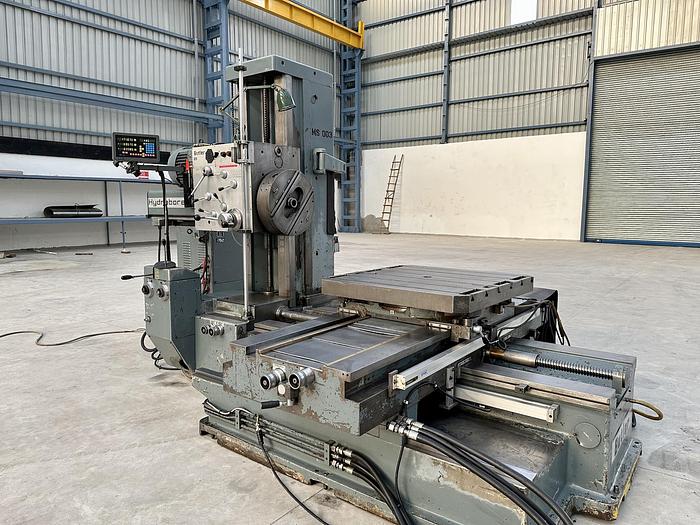

Butler England Horizontal Boring Machine

Butler (England) make Horizontal Boring Machine in excellent working condition. The model of the machine is Hydrabore 324 and the Spindle Diameter is 76 mm. The machine is complete with its Facing Chuck and is also equipped with a 3-Axis DRO. The technical details are as follows -

Make - Butler (England)

Model - Hydrabore 324

Spindle Diameter - 76 mm

Table Size - 920 mm x 920 mm

Cross Travel - 1425 mm

Vertical Travel - 900 mm

Longitudinal Travel - 1000 mm

Spindle Travel - 625 mm

Facing Chuck Diameter - 460 mm

Spindle Taper - MT 5

Spindle Speeds - 11 rpm to 1100 rpm

- Complete with Facing Chuck.

- Equipped with 3-Axis DRO.

- Machine is in excellent working condition.
