Ajax England Universal Cylindrical Grinder Machine
Ajax England Universal Cylindrical Grinder Machine
Contact us for price
Location:New Delhi, India
Description

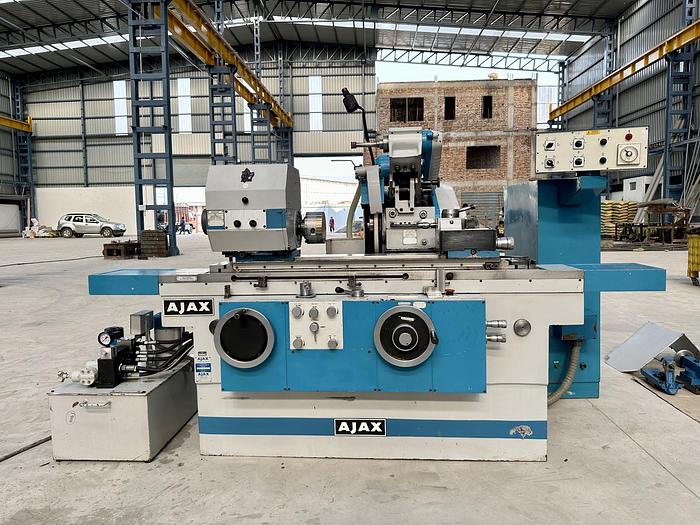

Ajax (England) make Universal Cylindrical Grinding Machine in excellent working condition. The model of the machine is AJ.260 and the Max. Length of Job is 500 mm. The machine is a High-Precision type machine with a Least Count of 1 Micron (0.001 mm). It is a complete Auto-Cycle Machine and has lots of accessories. The technical details are as follows -
Make - Ajax (England)
Model - AJ.260
Center Height - 130 mm
Max. Diameter of Job - 260 mm
Max. Length of Job - 500 mm
Grinding Wheel Size - 400 mm Diameter x 50 mm Width
Least Count of the Machine - 1 Micron (0.001 mm)
Work-Head Speeds - 56 rpm to 630 rpm
Internal Grinding Spindle Diameter - 80 mm
- Equipped with Internal Grinding Attachment.
- Complete with many different types of Wheel Dressers.
- Lots of Accessories like Wheels, Chucks, Centers, Gauges etc. etc.
- Features like Auto-Cut, Delay, Auto-Compensation, Spark-Out etc.
- Features like Plunge Grinding, Automatic Wheel Retraction etc.
- Machine can work in complete Auto-Cycle Mode.
- Complete with Coolant Tank & Pump.
- Operating Manual and Electrical Drawings are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Ajax |
| Model | AJ.260 |
| Condition | Used |
| Make | Ajax (England) |
| Model | AJ.260 |
| Center Height | 130 mm |
| Max. Diameter of Job | 260 mm |
| Max. Length of Job | 500 mm |
| Grinding Wheel Size | 400 mm Diameter x 50 mm Width |
| Least Count of the Machine | 1 Micron (0.001 mm) |
| Work-Head Speeds | 56 rpm to 630 rpm |
| Internal Grinding Spindle Diameter | 80 mm |
| Other Information 1 | - Equipped with Internal Grinding Attachment. |
| Other Information 2 | - Complete with many different types of Wheel Dressers. |
| Other Information 3 | - Lots of Accessories like Wheels, Chucks, Centers, Gauges etc. etc. |
| Other Information 4 | - Features like Auto-Cut, Delay, Auto-Compensation, Spark-Out etc. |
| Other Information 5 | - Features like Plunge Grinding, Automatic Wheel Retraction etc. |
| Other Information 6 | - Machine can work in complete Auto-Cycle Mode. |
| Other Information 7 | - Complete with Coolant Tank & Pump. |
| Other Information 8 | - Operating Manual and Electrical Drawings are available. |
| Other Information 9 | - Machine is in excellent working condition. |
