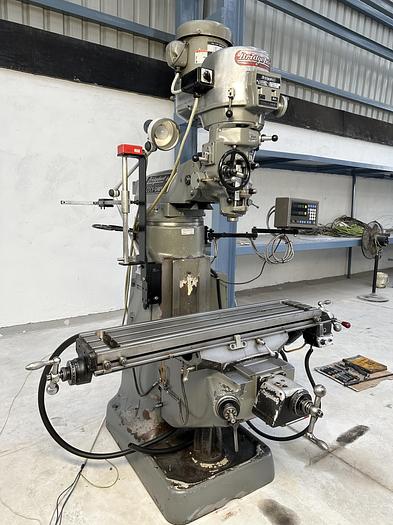

Bridgeport USA Vertical Turret Milling Machine
Bridgeport USA Vertical Turret Milling Machine
Contact us for price
Location:New Delhi, India
Description
Bridgeport (USA) make Vertical Turret Milling Machine in excellent working condition. The Model of the machine is Series I and the Table Size 1070 mm x 230 mm. The machine has Automatic Feed & Rapid Travels on the Longitudinal Travel of the Table. It is also equipped with a 2-Axis DRO. The technical details are as follows -
Make - Bridgeport (by Adcock-Shipley) (USA)
Model - Series I Range
Table Size - 1070 mm x 230 mm
Longitudinal Travel - 675 mm (Automatic)
Cross Travel - 295 mm
Spindle Speeds (Infinitely Variable) - 50 rpm to 3750 rpm
Spindle Travel - 127 mm
Spindle Diameter - 86 mm
- Equipped with a 2-Axis DRO.
- Automatic Feed & Rapid Movement on Longitudinal Travel.
- Operating Manual and Electrical Drawings available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Bridgeport (by Adcock-Shipley) |
| Model | Series I Range |
| Condition | Used |
| Make | Bridgeport (by Adcock-Shipley) (USA) |
| Model | Series I Range |
| Table Size | 1070 mm x 230 mm |
| Longitudinal Travel | 675 mm (Automatic) |
| Cross Travel | 295 mm |
| Spindle Speeds (Infinitely Variable) | 50 rpm to 3750 rpm |
| Spindle Travel | 127 mm |
| Spindle Diameter | 86 mm |
| Other Information 1 | - Equipped with a 2-Axis DRO. |
| Other Information 2 | - Automatic Feed & Rapid Movement on Longitudinal Travel. |
| Other Information 3 | - Operating Manual and Electrical Drawings available. |
| Other Information 4 | - Machine is in excellent working condition. |
